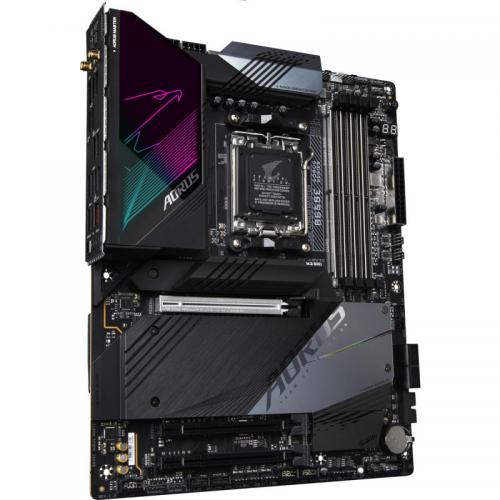

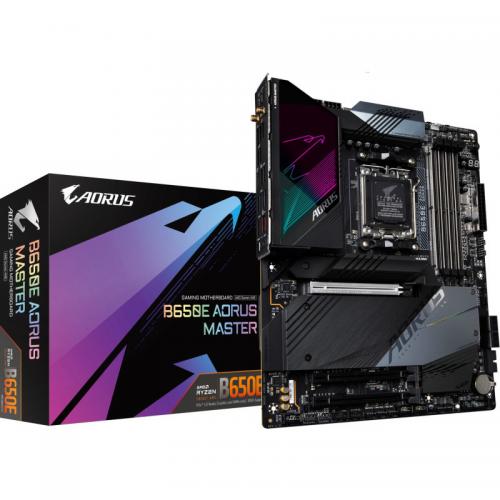

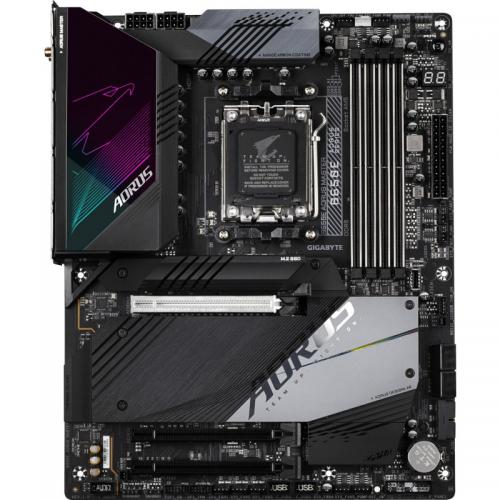

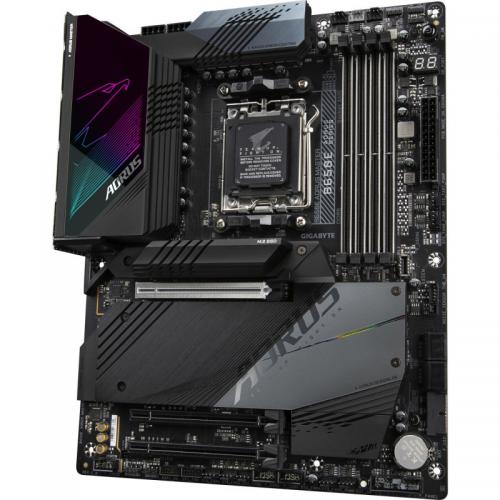

Placa de baza Gigabyte B650E AORUS MASTER, AMD B650E, Socket AM5, ATX
- Producator: Gigabyte
- Garantie: 36 luni
- Cod produs:
DESCRIERE PRODUS
B650E AORUS MASTER | Socket AM5 | 4 x DDR5 DIMM (up to 128GB) | Audio Realtek® ALC1220-VB CODEC | Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | Intel® Wi-Fi 6E RZ616 | 1 x PCI Express x16, 1x PCI Express x4, 1x PCI Express x1| 4 x M.2 Socket, 4 x SATA 6Gb/s | RAID 0, RAID 1, RAID 5, RAID 10 |1 x Q-Flash Plus button,1 x Clear CMOS button,1 x HDMI 2.1 port,2 x SMA antenna connectors (2T2R),1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support,4 x USB 3.2 Gen 2 Type-A ports (red),4 x USB 3.2 Gen 1 ports,4 x USB 2.0/1.1 ports,1 x RJ-45 port,1 x optical S/PDIF Out connector,2 x audio jacks | ATX
Specificatii produs
-
General
Recomandat GamingDaPlaca audio integrata7.1 Audio with RealtekChipset audioRealtek ALC1220-VBRAID0, 1, 10Placa video integrataNecesita procesor cu tehnologia AMD Radeon Vega GraphicsPlaca retea integrata10/100/1000/2500 MbpsChipset reteaRealtek 2.5GbEInterfata graficaPCI Express x16 4.0SATA III4NGFF (M.2)3 -
Procesor
CPU SocketAM5ChipsetB650EProducator chipsetAMDProcesoare suportateAMD AM5 Socket Ryzen 7000 Series -
Memorie
Model memorieDDR5Capacitate maxima memorie RAM128 GBTehnologieDual channelFrecvente suportate6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHzSloturi memorie4 -
Conectivitate

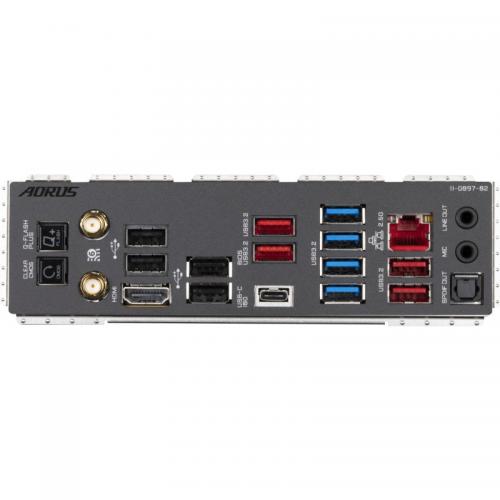

Iesire optica S/PDIF1Clear CMOS1HDMI1RJ-451USB 2.04USB 3.2 Gen1 tip A4USB 3.2 Gen2 tip A4USB tip C1 x USB 3.2 Gen 2x2 tip CSuport audio7.1WirelessWi-Fi 802.11 a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-BandBluetoothBluetooth 5.2BIOS FlashbackDa -
Sloturi
PCI Express x11PCI Express 3.02 (x4 / x2)PCI Express 4.01 (x16)PCI Express 5.01Multi-GPU CrossfireXSuporta AMD Quad-GPU CrossFire (PCIEX16 and PCIEX4) -
Specificatii Fizice
FormatATX
-
