Descriere

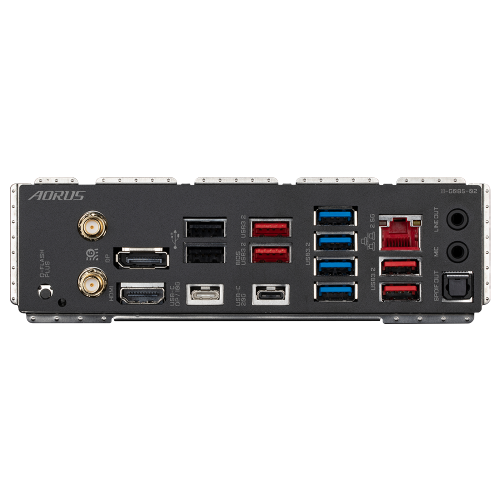

X670E Chipset | Socket AM5 | 4x DDR5 DIMM (up to 128GB) (32 GB single DIMM capacity) | Audio Realtek ALC1220-VB | Realtek GbE 2.5 LAN | Interfata WI-FI 802.11 a/b/g/n/ac/ax, BLUETOOTH 5.2 | 1x PCI Express x16 | 1x PCI Express x4 | 1x PCI Express x1 | 4x M.2 Socket 3, 6x SATA 6GB/s | RAID 0, 1, 10 | 1 x Q-Flash Plus button, 2 x SMA antenna connectors (2T2R), 1 x DisplayPort, 1 x HDMI 2.0 port, 1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support, 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support, 4 x USB 3.2 Gen 2 Type-A ports (red), 4 x USB 3.2 Gen 1 ports, ,2 x USB 2.0/1.1 ports, 1 x RJ-45 port, 1 x optical S/PDIF Out connector, 2 x audio jacks| E-ATX 30.5cm x 26.9cm
Specificatii produs
-
General
Recomandat GamingDaPlaca audio integrata7.1 Audio with Realtek ALC1220-VBChipset audioRealtek ALC1220-VBRAID0, 1, 10Placa video integrataNecesita procesor cu tehnologia AMD Radeon GraphicsPlaca retea integrata10/100/1000/2500 MbpsChipset reteaIntel 2.5GbE LANBIOS256Mb AMI UEFI BIOSInterfata graficaPCI Express x16 5.0SATA III6NGFF (M.2)4 -
Procesor
CPU SocketAM5ChipsetX670Producator chipsetAMDProcesoare suportateAMD AM5 Socket Ryzen 7000 Series -
Memorie
Model memorieDDR5Capacitate maxima memorie RAM128 GBTehnologieDual channelFrecvente suportate6400 / 6200 / 6000 / 5800 / 5600 / 5400 / 5200 / 4800 / 4400 MHzSloturi memorie4Alte specificatiiSuport pentru AMD EXtended Profiles for Overclocking (AMD EXPO) si Extreme Memory Profile (XMP) -
Conectivitate
Iesire optica S/PDIF1HDMI1DisplayPort1RJ-451USB 2.02USB 3.2 Gen1 tip A4USB 3.2 Gen2 tip A4USB tip C1 x USB 3.2 Gen 2x2 tip C
1 x USB 3.2 Gen 2 tip CAudio jacks2WirelessWi-Fi 802.11 a/b/g/n/ac/ax (2x2), supporting 2.4/5 GHz Dual-BandBluetooth5.3BIOS FlashbackDaConectori speciali2 x Conectori antena Wi-Fi SMA (2T2R) -
Sloturi
PCI Express 3.01 (x2)PCI Express 4.01 (x4)PCI Express 5.01 (x16)Multi-GPU CrossfireXSuporta AMD 2-Way CrossFireHeader USB 3.0Da -
Specificatii Fizice
FormateATXDimensiuni (L x l, cm)30.5 x 26.9 cm
