Descriere

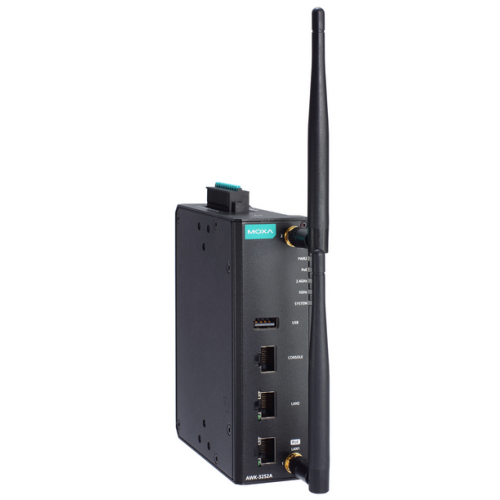

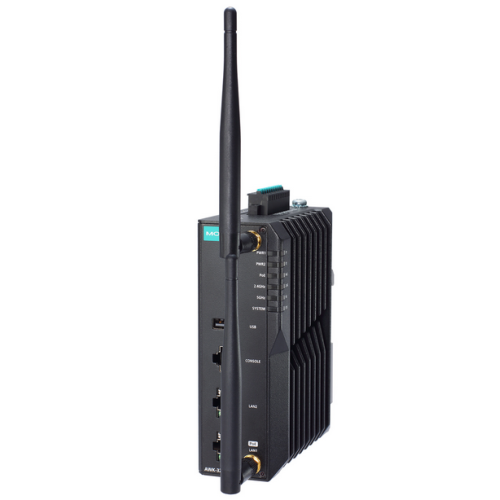

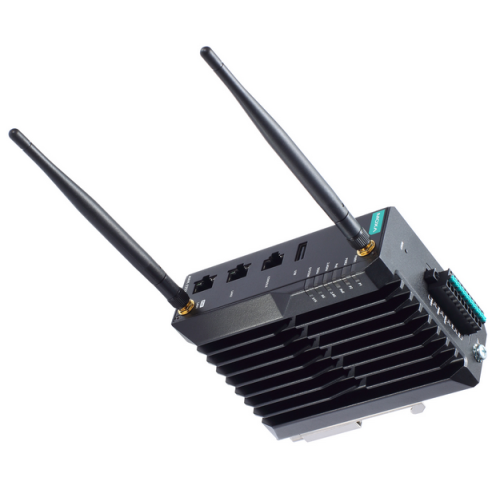

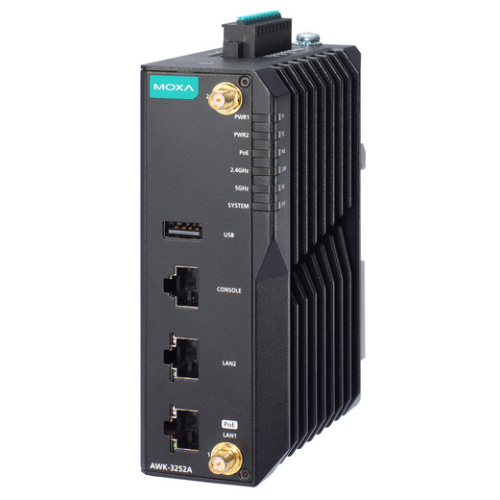

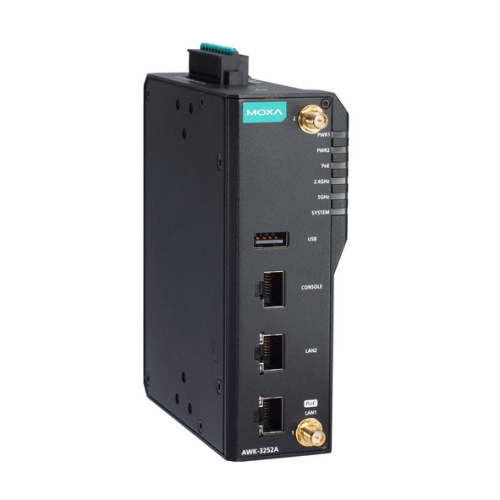

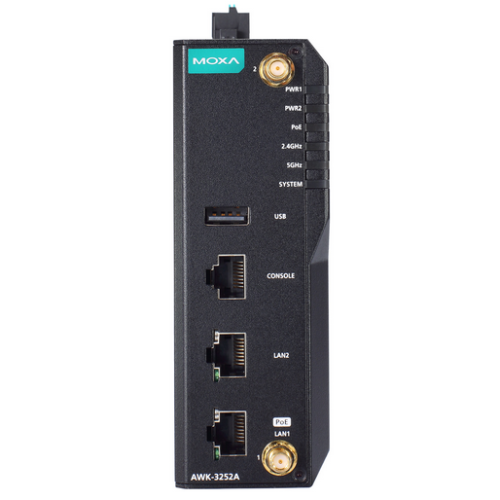

The AWK-3252A Series 3-in-1 industrial wireless AP/bridge/client is designed to meet the growing need for faster data transmission speeds through IEEE 802.11ac technology for aggregated data rates of up to 1.267 Gbps. The AWK-3252A is compliant with industrial standards and approvals covering operating temperature, power input voltage, surge, ESD, and vibration. The two redundant DC power inputs increase the reliability of the power supply, and the AWK-3252A can be powered via PoE to facilitate flexible deployment. The AWK-3252A can operate concurrently on both the 2.4 and 5 GHz bands and is backwards-compatible with existing 802.11a/b/g/n deployments to future-proof your wireless investments.
The AWK-3252A Series is compliant with the IEC 62443-4-2 and IEC 62443-4-1 Industrial Cybersecurity certifications, which cover both product security and secure development life-cycle requirements, helping our customers meet the compliance requirements of secure industrial network design.
Advanced 802.11ac Industrial Wireless Solution
-
802.11a/b/g/n/ac compliant AP/bridge/client for flexible deployment
-
DFS channel support allows a wider range of 5 GHz channel selection to avoid interference from existing wireless infrastructure
Advanced Wireless Technology
-
Seamless roaming with client-based Turbo Roaming for < 150 ms roaming recovery time between APs (Client Mode)
Industrial Ruggedness
-
Integrated antenna isolation designed to provide protection against external electrical interference
-
-40 to 75°C wide operating temperature models (-T) provided for smooth wireless communication in harsh environments
Specificatii produs
-
Caracteristici generale
Utilizare exteriorNuPort LAN2 x RJ45Viteza transfer LAN1 GbpsStandarde WiFiIEEE 802.11a/b/g/n/acRata de transfer WiFi1267 Mbps
2.4 GHz: 400 Mbps
5 GHz: 867 MbpsFrecventa WiFi2.4 GHz
5 GHzStandarde IEEE 802.3IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1Q, IEEE 802.1XSecuritateWPA/WPA2/WPA3-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
WPA/WPA2/WPA3-PersonalDual BandDaAntenaExternaTip antena2 x 2 MIMOPutere antena2 dBiPort USB1 x USB 2.0Alte porturi1 x RS232 (consola)
1 x 8-pin RJ45 (consola)ManagementDHCP Server/Client, HTTP, IPv4, LLDP, SMTP, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, UDP, Proxy ARP, VLAN, Wireless Search Utility, MXview, MXconfigFunctii LEDPWR1, PWR2, PoE, SYS, 2.4G, 5G, LAN1, LAN2PoEDa, ActivAlimentare48 VDCPutere consumata28.4 WDimensiuni45 x 130 x 100 mmGreutate700 gCuloareNegruAlteleTemperatura de Operare: -40 - 75°C
