Descriere

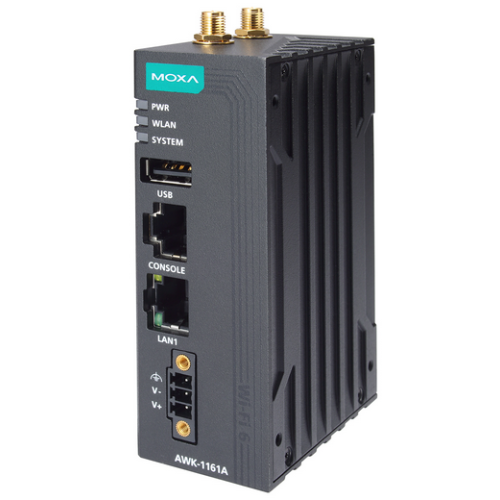

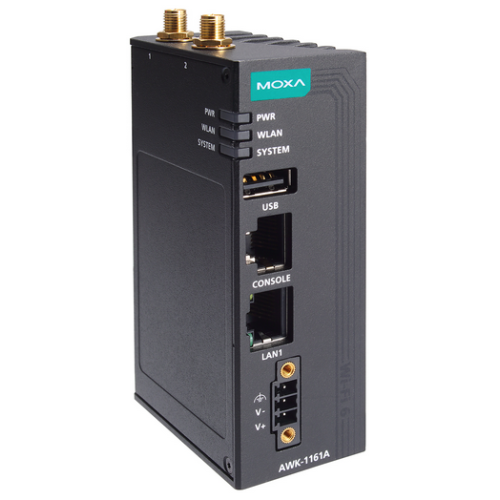

The AWK-1161A Series industrial wireless AP is designed to meet the growing need for faster data transmission speeds while servicing more clients through IEEE 802.11ax (Wi-Fi 6) technology. The AWK-1161A is compliant with industrial standards and approvals covering operating temperature, power input voltage, surge, ESD, and vibration. The compact form factor with DIN-rail or optional wall mounting easily fits into industrial machines or control cabinets, offering reliable wireless services. The AWK-1161A supports selectable 2.4 and 5 GHz bands and is backwards compatible with existing 802.11a/b/g/n/ac deployments to future-proof your wireless investments.
Advanced 802.11ax Industrial Wireless Solution
-
802.11ax Wi-Fi 6 compliant access point backwards compatible with Wi-Fi 4/ Wi-Fi 5 for flexible deployment
-
DFS channel support allows a wider range of 5 GHz channel selection to avoid interference from existing wireless infrastructure
-
Wi-Fi 6 OFDMA (Orthogonal Frequency-Division Multiple Access) technology enables concurrent communication with multiple clients for improved network efficiency
-
Wi-Fi 6 TWT (Target Wake Time) technology facilitates better scheduling and longer battery life for connected devices
Advanced Wireless Technology
-
AP-based client disconnection mechanism to help wireless clients without roaming intelligence obtain optimal AP services
Industrial Ruggedness
-
Integrated antenna isolation designed to provide protection against external electrical interference
-
-40 to 75°C wide operating temperature (-T) models for smooth wireless communication in harsh environments
Specificatii produs
-
Caracteristici generale
Utilizare exteriorNuPort LAN1 x RJ45Viteza transfer LAN1 GbpsStandarde WiFiIEEE 802.11a/b/g/n/ac/axRata de transfer WiFi1775 Mbps
2.4 GHz: 575 Mbps
5 GHz: 1200 MbpsFrecventa WiFi2.4 GHz
5 GHzStandarde IEEE 802.3IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az, IEEE 802.1Q, IEEE 802.1XSecuritateWEP encryption (64-bit and 128-bit)
WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
WPA/WPA2-PersonalDual BandDaAntenaExternaTip antena2 x 2 MIMOPutere antena2 dBiPort USB1 x USB 2.0Alte porturi1 x RS232 (consola)
1 x 8-pin RJ45 (consola)ManagementDHCP Server, DHCP Client, DNS, HTTP, IPv4/IPv6, LLDP, SMTP, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, UDP, VLAN, MXconfigModulatieOFDMAFunctii LEDPWR, WLAN, SYSTEMAlimentare9 - 30 VDC
Alimentatorul nu este inclusPutere consumata14 WDimensiuni60 x 100 x 34.2 mmGreutate330 gCuloareNegruAlteleTemperatura de Operare: -25 - 60°C
