Descriere

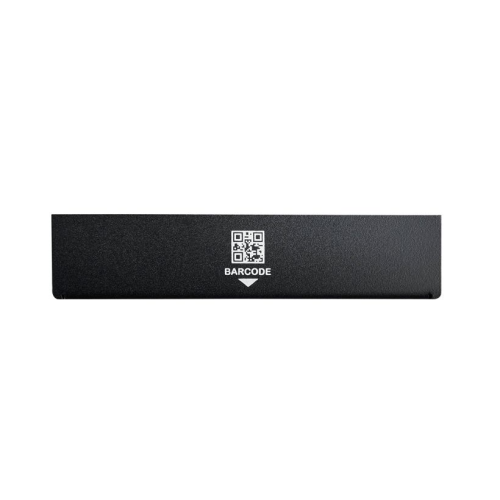

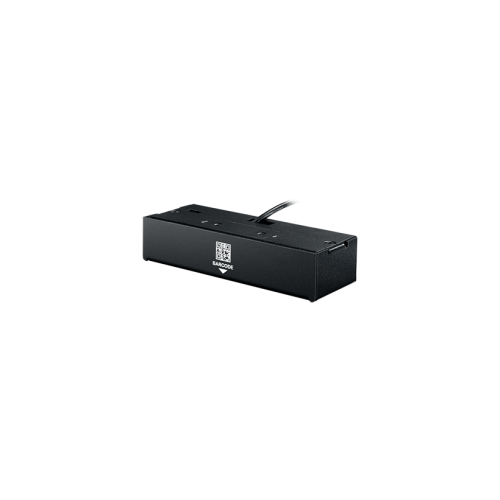

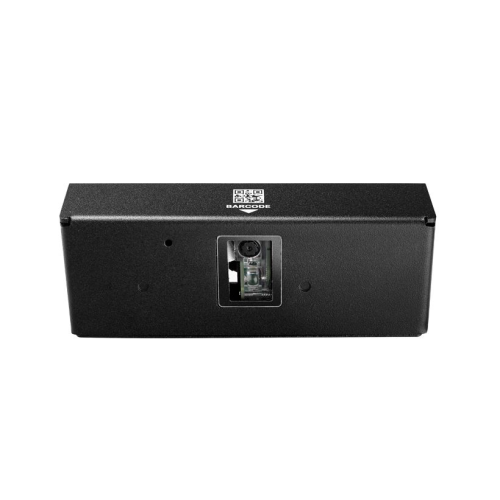

2D Barcode Scanner Module, N368, USB, fits for: UTC-300 Series
Specificatii produs
-
Tip accesoriu
2D Barcode ReaderDa -
Serie compatibila
UTC-315 SeriesDaUTC-318 SeriesDaUTC-320 SeriesDa -
General
Sisteme de operare suportateWindows 7 / Windows 8* / Windows 10Performante scanareSensor: CMOS sensor with 640 x 480 pixel resolution
Illumination & Aiming: White LED illumination; Red LED dot aimer
Typical frame rate: 30 frames per second
Motion Tolerance: Up to 100 cm/s (4 in/s) for 13 mil UPC at optimal focus
Field of View: Horizontal: 37.8°, Vertical: 28.8°
Scan Angles: Tilt: 360°, Pitch: ± 45°, Skew: ± 45°
Symbol Contrast: 35% minimum print contrast ratioCoduri de bare scanateLinear: Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 Databar, UPC-A, UPC E, UPC-A/EAN-13 with Extended coupon Code, Coupon GS1 Code 32(PARAF), EAN-UCC Emulation, GS1 Data bar
2D Stacked: Codablock A, Codablock F, PDF417, MicroPDF417
2D Matrix: Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible(Han Xin) code
Postal Codes: Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, PostnetDimensiuni100 x 37 x 22 mmCuloareNegru
