Descriere
Efficiency
- Above 96% efficiency in double conversion mode
- Up to 99% efficiency with Energy Saver System
Scalability
- Scalable architecture and ‘Pay as you grow’ capability to minimise Capital Expenditure
- Paralleling of up to 4 units
Inherent redundancy

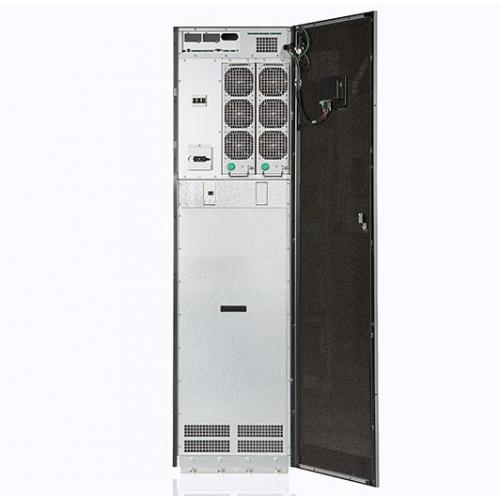

- Modular design allows internal redundancy (separate battery configuration also available)
Smallest footprint in the market

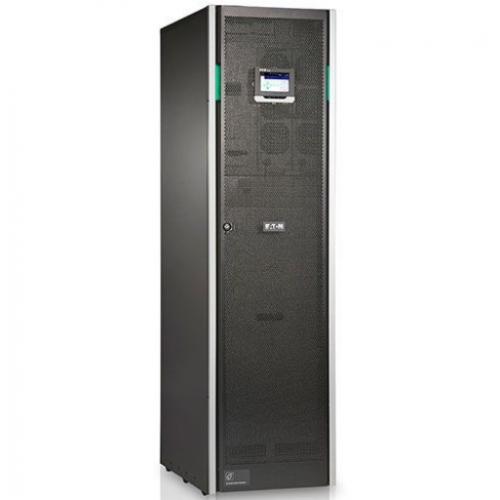

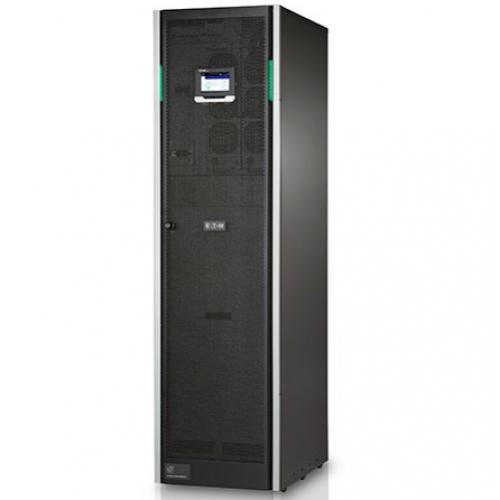

The 93PS provides significantly more in a smaller package, with a footprint of only 0.25 m² for the smaller frame (8-20 kW) and 0.36 m² for the large frame (8-40 kW)
Unity power factor (1.0)
Hot Swap and Hot Scalable
- A module can be replaced while the other continues protecting the load (concurrent maintenance)
- A module can be added while the other continues protecting the load (hot scalable)
- Individual battery strings can be serviced while other strings are supporting the load
Super-sized static switch
Optional super-sized Static Switch to enhance the selectivity of the overall electrical installation
Safety
- Equipped with an ultra-rapid fuse in the Static Switch – ensuring safety in all scenarios
- Equipped with a backfeed contactor – no need for additional installments
Cloud & Virtualisation ready
- The 93PS and Eaton’s Intelligent Power Manager software suite takes the resiliency of the system to the next level by bridging the electrical and IT infrastructure
- IT and electrical infrastructure management from a “Single pane of glass”
- Load shedding – 50% drop in load equates to 250% more runtime!
Specificatii produs
-
General
TipOnlinePutere20000 VATensiune de alimentare380 - 415 V, 50/60 HzDisplayDaCaracteristici displayLCDInterfataRS-232
USBBaterieAcid de plumb, Sigilat (VRLA)Numar baterii0 (Bateriile nu sunt incluse)Baterie inlocuitoareSuporta pana la 128 baterii
Hot-SwapIncarcare20kW (posibilitate de upgrade pana la 40kW)Montare in rackNuCuloareNegru-ArgintiuDimensiuni480 x 750 x 1750 mmGreutate189 kgAccesorii inclusePlaca Management
Intelligent Power Software suiteAlteleDesignul modular permite redundanta interna
Protectie IP 20
Comutator bypass de intretinere intern (MBS) -
Management
ManagementDa
Review-uri (0 Review-uri))
Acordati numarul de stele corespunzator parerii dumneavoastra despre produs, urmarind explicatia din partea dreapta.
Spuneti-ne parerea despre produs.
Produse similare
Extinde garantia produsului
Extinde perioada de garantie cu unul sau doi ani peste perioada de garantie standard oferita de producatori.
Adauga review

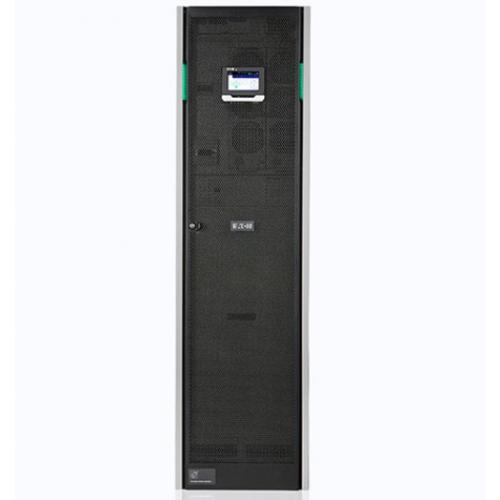

UPS Eaton 93PS BC02A0306A01000000, 20000VA
