Descriere

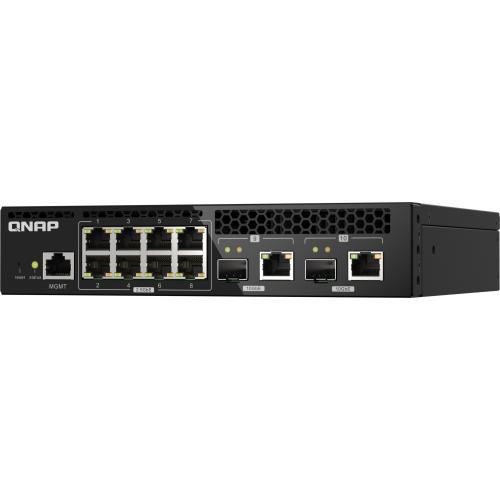

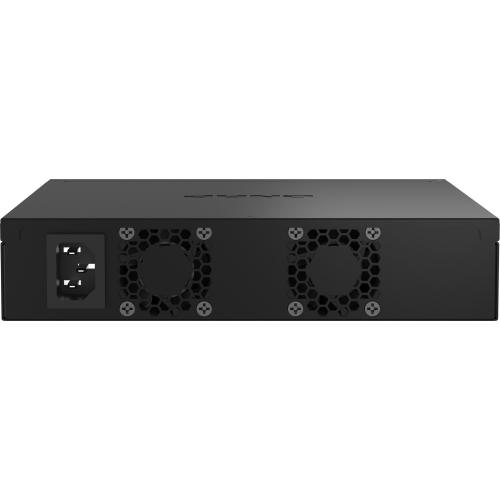

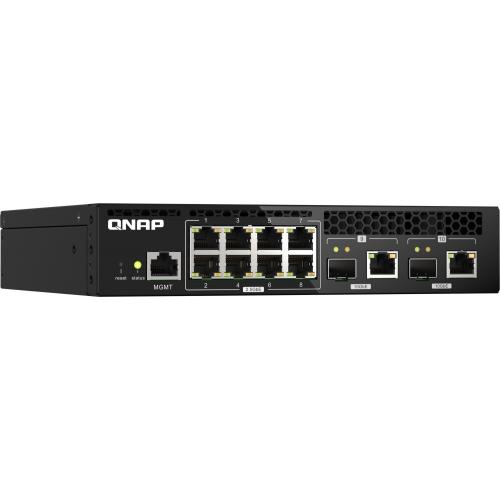

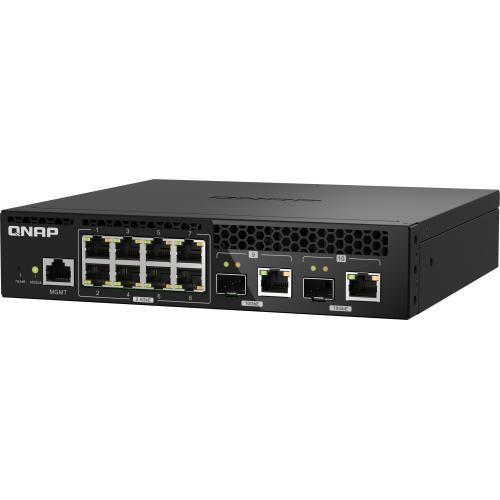

The QSW-M2108R-2C is a Layer 2 Web Managed Switch with two 10GbE SFP+/RJ45 combo ports and eight 2.5 Gigabit ports. Supporting Layer 2 switching and network management via a user-friendly web user interface, the QSW-M2108R-2C offers flexible deployment in hybrid high-speed network environments and provides an entry-level network management solution. With a half-width design, two QSW-M2108R-2C can be installed in a 1U rack space for space-saving. The QSW-M2108R-2C is compatible with 10GbE and NBASE-T technologies, supporting up to five speeds (10G / 5G / 2.5G / 1G / 100M) to provide higher transmission speeds when using existing Cat 5e and 6a cables.
Specificatii produs
-
Caracteristici generale
Tip SwitchRetea RJ45Numar Porturi8x RJ-45
2x SFP+/RJ45Viteza Transfer LANRJ-45: 100/1000/2.5G/5G/10GBase-T
SFP+: 1G/10Gb/sManagementWeb ManagedPoENuStandardeIEEE 802.3 Ethernet
IEEE 802.3u 100BASE-T
IEEE 802.3ab
1000BASE-T
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3ae 10G Fiber
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.1Q VLAN Tagging
IEEE 802.1w RSTP
IEEE 802.3ad LACP
IEEE 802.1AB LLDP
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.1p Class of ServiceSecuritateAccess Control Lists (ACL): ACL by IP address, ACL by MACVLANsVLAN configuration
IEEE 802.1Q-based VLANTabela de adrese MAC16KStackableDaSwitch capacity80 GbpsAlimentare100-240VAC, 50/60 HzPutere consumata (W)36WDimensiuni43.3 x 207 x 199.5 mmGreutate1.2 kg
