Descriere

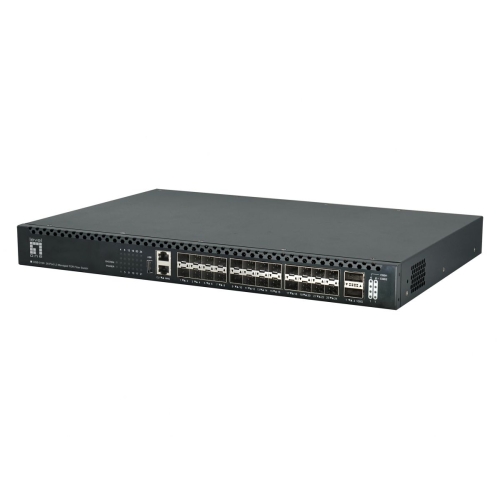

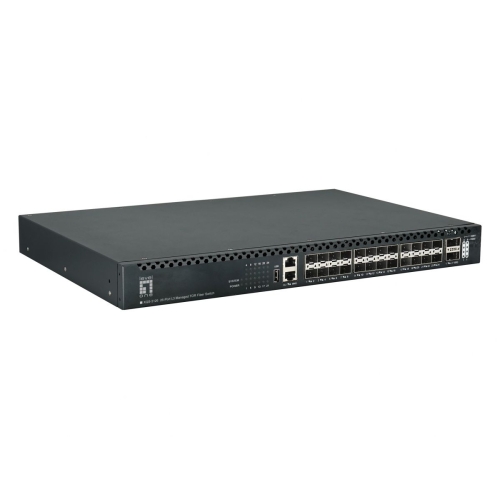

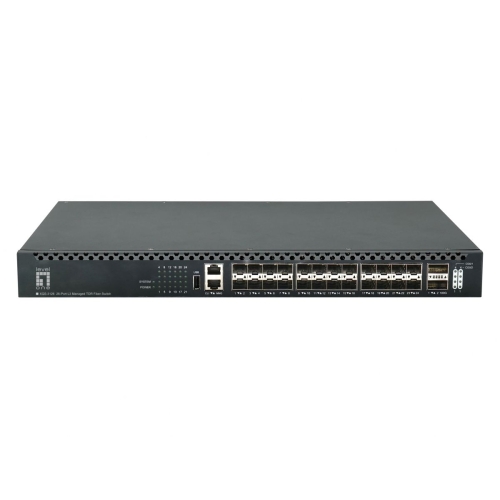

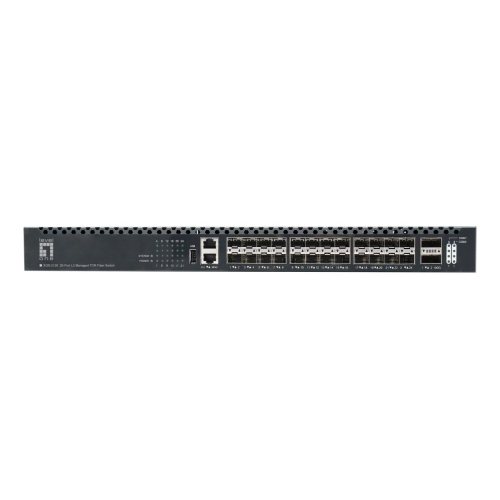

LevelOne Switch 26x GE XQS-3126 2x40/100GbE 19" 185W 24xPoE XQS-3126
Specificatii produs
-
Caracteristici generale
Tip SwitchRetea Fibra OpticaNumar Porturi24 x 1/10GbE SFP+
2 x 40/100GbE QSFP28 (uplink)Viteza Transfer LAN10-Gigabit EthernetTehnologie de cablareBASE-TManagementConsole, Telnet, SSH 2.0
Zero Touch Provisioning (ZTP)
Web-GU
SNMP v1/v2c/v3
Upload and download of FTP/TFTP/SFTP files RMON event history
Traffic statistical analysis such as sFLOWLayerL2 - L4PoENuStandardeIEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
IEEE 802.1Q VLAN
IEEE 802.1v protocol-based VLAN
IEEE 802.1x authentication
IEEE 802.3ah Ethernet Link OAM
IEEE 802.1ag Connectivity Fault Management and ITU-Y.1731
IEEE 802.3az
IEEE 802.1AE MacSec
IEEE 802.1P/DSCP priority mapping and remarkSecuritateL2~L4 ACL flow identification and filtering security mechanism
DDoS attack prevention, TCP-SYN/UDP Flood attack prevention
Suppression of multicast, broadcast, and unknown unicast packets
Port isolation
Port Security, IP+MAC+port binding
DHCP Snooping, DHCP Option 82
IEEE 802.1x authentication
Radius, Tacacs+
URPF
Command line hierarchical protectionVLANs4K VLAN IDs
GVRP
1:1 and N:1 VLAN Mapping
QinQ and selective QinQ
Private VLANTabela de adrese MAC128 KConectori1 x RJ-45 Console
1 x RJ-45 ManagementMontare in rackDa, 19 inchMemorie Buffer4.5 MBForwarding rate660 MppsSwitch capacity880 GbpsLED IndicatorsPOWER
SYSTEM
LINK/ACTDisipare caldura238.91 BTU/hTensiune de intrare100-240VAC, 50-60Hz, 2A MAXPutere consumata (W)26W (Standby)
64W (full loading on)Nivel zgomot57 dBDimensiuni442.5 x 300 x 44.5 mmGreutate4.25 kg
