Descriere

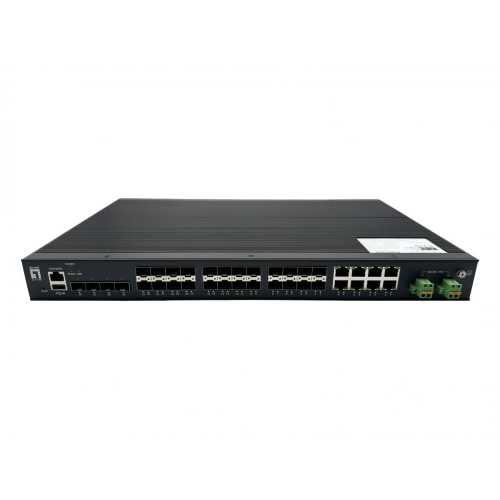

LevelOne Switch 28x GE IGX-2872 16x 1.25GbE,8x SFP/RJ45 IGX-2872
Specificatii produs
-
Caracteristici generale
Tip SwitchRetea Fibra OpticaNumar Porturi16 x 1.25GbE SFP
8 x Gigabit SFP/RJ45 Combo
4 x 1.25/2.5/10GbE SFP+ (uplink)Viteza Transfer LAN1 GbpsManagementUser Management
Support password protection
Support user authorization management SNMP
Supporting SNMP V1/V2C/V3 version Web Management
Support HTTP V1.1
Support HTTPS CLI management
Console/Telnet command line management RMON
Support RMON(Remote Monitoring) alarm Firmware upgrade Fault Detection
Ping/Tracerout
Dying gasp
Support DDM function Cable detection
Support copper port cable detection NTP
Network Time Protocol Syslog/Debug
Syslog send to three servers Configuration import/export
Support FTP/TFTP remote import/export
Support USB import/export Dual partition management
Support dual partition switchingLayerLayer 2StandardeIEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Ethernet
IEEE 802.3ab 1000Base-T Ethernet
IEEE 802.3z 1000Base-X Ethernet
IEEE802.3x Flow Control and Back Pressure
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1Q VLAN
ITU-T G.8032 ERPS
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3ad LACPSecuritateACL
IP Standard ACL
MAC extend ACL
IP extend ACL
IPv6 ACL QoS
Support QoS Class, remarking
Support SP, WRR queue scheduling
Ingress port-based rate-limit
Egress port-based rate-limit
Support policy- based QoS 802.1x
Port access control
Mac- address access control
RADIUS server IP source guard
IP Port/MAC binding ARP-check
Support ARP-check and ARP packet filtering for illegal users Access control
Support Telnet/SSH/HTTP/HTTPS user access control Port-securityVLANsDaTabela de adrese MAC16KMontare in rackDa, 19 inchMemorie Buffer12 MbitLED IndicatorsSystem
Power
USB
Link/ActTensiune de intrare36-75 VDCAlimentare36-75 VDCPutere consumata (W)40 WDimensiuni440 x 280 x 45 mmGreutate4.1 kgContinut pachetSwitch IGX-2872
Power terminal block
2 x Cablu alimentare
Cablu consola
Kit montare in rack
QIG
Declaratie de conformitate
