Descriere

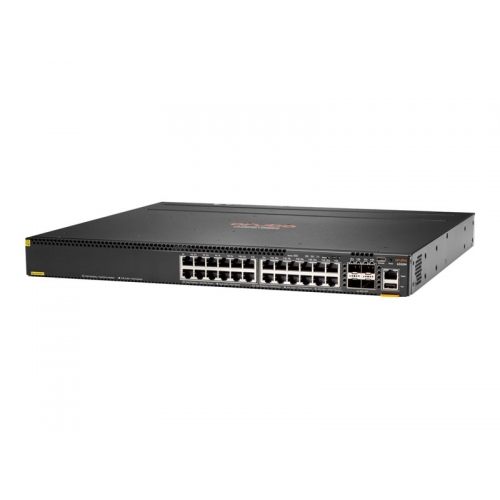

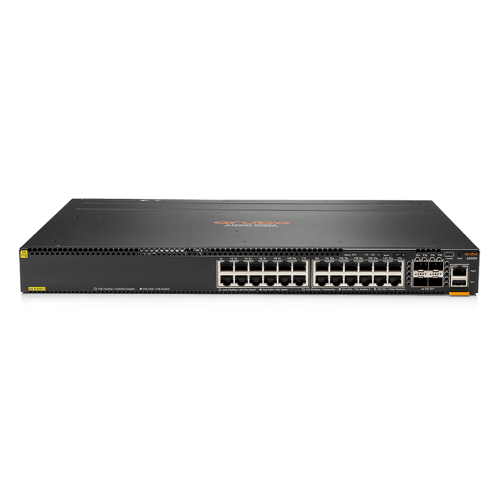

Aruba, a Hewlett Packard Enterprise company CX 6300M. Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 1, Console port: USB. Switching capacity: 880 Gbit/s. Networking standards: IEEE 802.3af,IEEE 802.3at. Power over Ethernet (PoE)
Specificatii produs
-
Caracteristici generale
Tip SwitchRetea RJ45Numar Porturi24x RJ45
4x 50G SFP56 (uplink)Viteza Transfer LAN10/100/1000 MbpsTehnologie de cablareRJ45 Base-TManagementDaLayerLayer 3PoEPoE+ Class 4PoE Budget720 WStandardeIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3btTabela de adrese MAC32KRutare IPIPv4: 32000
IPv6: 64000StackableDaCaracteristici specialeDHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, High Availability, PVST, MSTP support, ACL support, QoS, Jumbo Frames support, MLD snooping, UDLD, Rapid PVST+, DWRR, LLDP support, MIB, DHCP protection, dual firmware images, MVRP, packet storm protection, CoS, SP, broadcast storm protection, ToS, BPDU, VXLAN, Multicast Storm Protection, NTP, RA guard, ZTP, PIM, VLAN Tagging, RSTP, IPv4 and IPv6 dual stack, IP multicast, Aruba VSF, dynamic IPv6 lockdown, ND snooping, Unicast Storm protection, Microsoft NLBConectori1x USB‑C Console
1x OOBM
1x USB-A HostMontare in rackDa, 1UProcesorQuad Core ARM Cortex A72 @ 1.8GHzMemorie8 GB DDR4 SDRAMMemorie FLASH32 GBForwarding rate334 MppsSwitch capacity448 GbpsProtocoale de rutareEGP, BGP-4, IGMPv2, IGMP, VRRP, OSPFv2, IGMPv3, OSPFv3, MSDP, static IPv6 routing, ECMP, MLD, Bidirectional Forwarding Detection (BFD)Remote Management ProtocolRMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH, CLI, XRMON, SFTPAlimentareSursa nu este inclusa
Surse compatibile: 680W - JL086A,1050W - JL087A, 1600W - JL670A, 1050W - JL758ADimensiuni44 x 442 x 385 mmGreutate5 kg
