Descriere

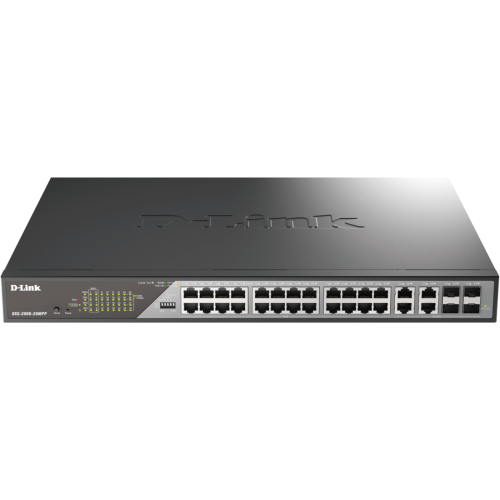

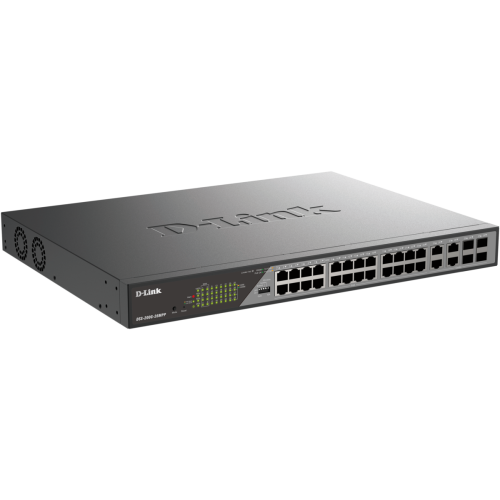

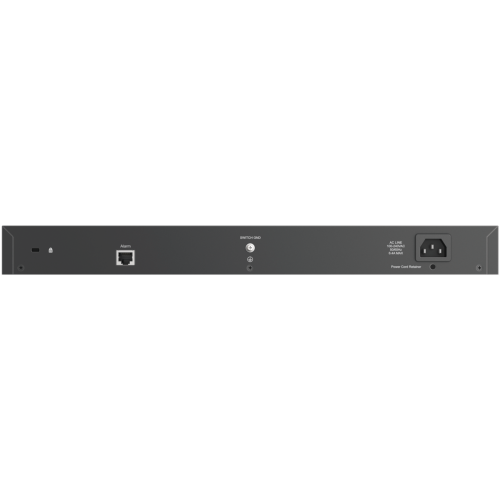

D-Link DSS-200G-28MPP/E. 28-Port Gigabit Ethernet PoE++ Surveillance Switches -24 x 10/100/1000 Mbps 4 x Combo 1000 Mbps (518W) -Switching Capacity 56Gbps -Maximum Forwarding Rate 41.67Mpps -MAC Address Table size – 8K -Packet Buffer 4.1MBits -Memory DDR3 128MB -Flash 32M Memory -PoE Power Budget 518W 90W Max per PoE port – Active PoE Port 1 to 8 – 30W max PoE port 9 to 24 -53.0 dBA Sound profile -DIP switches to enable QoS and Extended Mode 250M@10Mbps (DIP port 1 –8 – Web Port 1-24 control) -VLAN feature supported -Port based, 802.1Q Tagged, Auto Surveillance, Voice, Management, Asymmetric and VLAN Groups 128 Static Groups. Maximum 4094 VIDs. -L2 Feature available -Flow Control & HOL blocking prevention -Jumbo Frames up to 10,240 bytes -IGMP Snooping v1/v2 -802.3ad Supports 5 groups per device and 8 ports per group -G.8032 ERPS – Ethernet Ring Protection Switching -LLDP Link Layer Discover Protocol -Port Mirroring -QoS options – 4 Queues per port. With Strict model or Weighted Round Robin -Port-based Bandwidth Control(Rate Limiting) -Security features such as -D-Link Safeguard Engine, Traffic segmentation, Broadcast/Multicast and Unknown Unicast Storm Control. DoS Attack Prevention system. -Energy saving Green features -LED shut off, Port Shut off, System Hibernation, IEEE 802.3az EEE and time based PoE
Specificatii produs
-
Caracteristici generale
Tip SwitchRetea RJ45Numar Porturi24x RJ45
4x SFP (uplink)Viteza Transfer LAN1 GbpsTehnologie de cablareRJ45 Base-TPoEDa
Port 1 - 24PoE Budget518 WStandardeIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.3azSecuritateD-Link Safeguard, Traffic Segmentation, Broadcast/Multicast/Unknown Unicast Storm Control, DoS Attack Prevention, SSLTabela de adrese MAC8 KMemorie Buffer4.1 MBitsMemorieDDR3 128 MBMemorie FLASH32 MBForwarding rate41.67 MppsSwitch capacity56 GbpsDisipare caldura209.16 BTU/hTensiune de intrare100 - 240 V AC, 50 - 60 HzAlimentareSursa internaPutere consumata (W)Cu PoE Max: 579.3 W
Fara PoE Max: 23.52 W
Standby: 15.19 WNivel zgomot55 dBADimensiuni440 x 330 x 44 mmGreutate4.71 kg
