Descriere

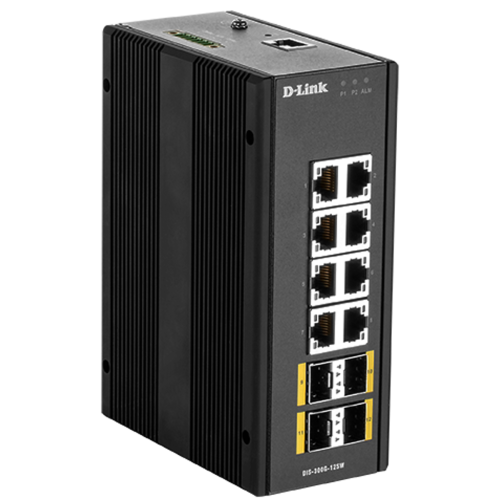

D-Link DIS-300G-12SW. 12 Port L2 Managed Switch Switch with 8 x 10/100/1000BaseT(X) ports & 4 x 100/1000BaseSFP ports - Industrial Gigabit Managed Switch - 8 x 100/1000BasetT Auto-Negotiating Ports - 4 x 100/1000Base SFP slots - Support Single & Multiple rings; Ring coupling; Dual-homing; Chain with link loss recovery < 20ms - IEEE 802.1D/1w/1s Spanning Tree Protocol, 802.3ad Link Aggregation - Port-based VLAN, 802.1Q, 802.1ad Double Tagging (Q in Q), 802.1v Protocol-based VLAN, Private VLAN - IGMP v1/v2/v3, IGMP snooping - IEEE 802.1X authentication Network Access Control, RADIUS or TACACS+ AAA - WEB-based Management and SNMP v1, v2c, v3 - Redundant Input Terminals with Input Voltage Range 12-58 VDC - Power Consumption Max. 17W - Multicast/Broadcast/Flooding Storm Control - IP-30 Ingress Protection - Operating Temperature -40°to 75°C - Environmental Test: Shock - IEC 60068-2-27, Freefall - IEC 60068-2-32, Vibration - IEC 60068-2-6 - Certifications: UL 60950-1, CE, FCC, NEMA-TS2 - Fanless design - DIN-Rail mounting and Wall mounting installation
Specificatii produs
-
Caracteristici generale
Tip SwitchRetea RJ45Numar Porturi8x RJ45
4x SFP (uplink)Viteza Transfer LAN1 GbpsTehnologie de cablareRJ45 Base-T
Base-XManagementDaLayerLayer 2StandardeIEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1xSecuritateRADIUS, TACACS+VLANs256Tabela de adrese MAC8 KCaracteristici specialeRugged, fanless, auto-negotiation, auto-uplink (auto MDI/MDI-X), STP support, RSTP support, MSTP support, full duplex mode, half duplex mode, VLAN Double Tagging (Q-in-Q), IGMP querier, IGMP snooping, QoS, SPQ, WRR, traffic shaping, AAA, Broadcast Storm Control, Multicast Storm Control, Flooding Storm Control, Syslog support, DDM, DHCP client, DHCP relay, DHCP server, DHCP snooping, SNTP supportMontare in rackDa, DIN railProtocoale de rutareIGMP, IGMPv2Remote Management ProtocolSNMP 1, SNMP 2c, SNMP 3, Telnet, HTTPS, SSH, NTPTensiune de intrare12-58 VDCAlimentare2 Terminale de intrare redundante
Sursa de alimentare nu este inclusa!Putere consumata (W)Max. 17 WDimensiuni61 x 154 x 109 mmGreutate1.086 kg
