Descriere

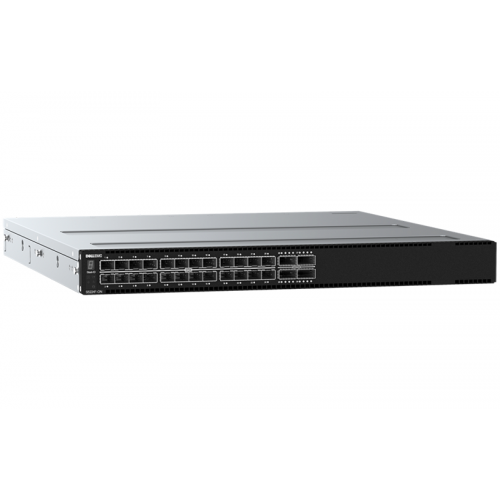

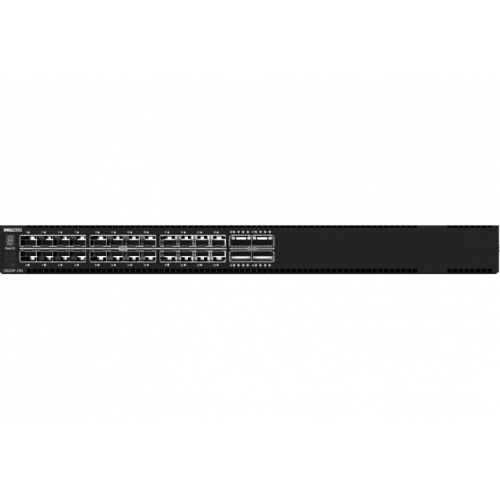

Dell EMC S5224F-ON SWITCH 24X 25GBE SFP28 4X 100GBE QSFP28 PORTS IO TO PSU AIR 2X PSU OS10, 1Yr
Specificatii produs
-
Caracteristici generale
Tip SwitchRetea Fibra OpticaNumar Porturi24x SFP28
4x QSFP28 (uplink)Viteza Transfer LAN25 GbpsTehnologie de cablareBase-X SFP28ManagementDaLayerLayer 3StandardeIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1t, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 1588v2SecuritateMD5, RADIUS, TACACS, Secure Shell v.2 (SSH2)Tabela de adrese MAC288KRutare IPIPv4: 128000
IPv6: 64000Caracteristici specialeFlow control, full duplex capability, ARP support, trunking, VLAN support, IGMP snooping, Syslog support, port mirroring, IPv6 support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Data Center Bridging Exchange (DCBX) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, IPv4 support, LLDP support, Data Center Bridging (DCB), Management Information Base (MIB), Network Access Control (NAC), Precision Time Protocol (PTP), 4 fans, RDMA over Converged Ethernet (RoCE), Priority-Based Flow Control (PFC), Internet Control Message Protocol (ICMP), 32MB packet buffer, Virtual Extensible LAN (VXLAN), Link Aggregation, RDMA over Converged Ethernet (RoCE) v2, Open Network Install Environment, DNS client, LLDP-MED, proxy ARP, VLAN Tagging, Rapid PVST+ (RPVST+), Zero-Touch Deployment, DHCPv6 relay, DHCPv4 relay, DHCPv4 server, DHCPv6 serverConectori1x port RJ45 consola/management cu RS232Montare in rackDa, 1RUSistem de operareDell SmartFabric OS10Memorie Buffer32 MBMemorie8 GBMemorie FLASH16 GBMetoda forwarding720 Mpps (1.42 Bpps full duplex)Switch capacity1.08 Tbps (2.16 Tbps full duplex)Protocoale de rutareOSPF, BGP-4, BGP, IGMPv2, IGMP, VRRP, OSPFv2, static IP routing, IGMPv3, OSPFv3, policy-based routing (PBR), MLDv2, MLD, Bidirectional Forwarding Detection (BFD), VRRPv3, CIDR, MLDv3, MSTPRemote Management ProtocolSNMP 1, Telnet, SNMP 2c, TFTP, SSH-2, CLI, NTPTensiune de intrare100–240 VAC 50/60 HzAlimentare2x PSUPutere consumata (W)Maximum: 455 W
Tipic: 200 WDimensiuni460 x 44 x 434 mmGreutate9.7 kg
