Descriere

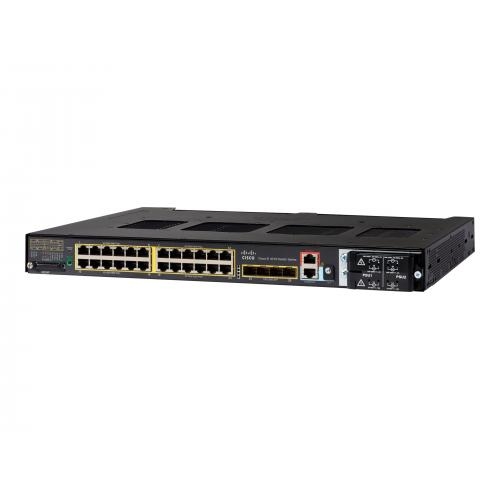

Cisco IE-4010-4S24P. De tip Switch: Gestionate, Strat Switch: L2/L3. Tip de porturi Ethernet Basic switching RJ-45: Gigabit Ethernet (10/100/1000), Număr de porturi Ethernet Basic switching RJ-45: 24, Număr porturi USB 2.0: 1, Port consolă: RJ-45. Duplex complet. Mărimea tabelei de adresare: 16000 intrari, Capacitatea de comutare: 56 Gbit/s. Reţea standard: IEEE 802.3,IEEE 802.3af,IEEE 802.3at. Power over Ethernet (PoE) Suport. Raft pentru montat echipamente, Factorul de formă: 1U
Specificatii produs
-
Caracteristici generale
Tip SwitchRetea RJ45Numar Porturi24x RJ45
4x SFP (uplink)Viteza Transfer LAN10/100/1000MbpsTehnologie de cablare1000BASE-TManagementDaLayerLayer 3PoEPoE+StandardeIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ah, IEEE 802.1ag, IEEE 802.1ae, IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.11ac, IEEE 1588v2, IEEE 1613Securitate802.1x RADIUS, FIPS 140-2, SNMP, SSHVLANs1000Tabela de adrese MAC16KCaracteristici specialeNAT support, BOOTP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, tunnelling, DHCP snooping, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Bidirectional Forwarding Detection (BFD), Uni-Directional Link Detection (UDLD), LLDP support, MAC Address Notification, Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), dynamic ARP protection, Class of Service (CoS), 802.1x authentication, Precision Time Protocol (PTP), IGMP filtering, Storm Control, PROFINET v2, EtherNet/IP CIP Messaging, IP source guard, Flex Link support, Resilient Ethernet Protocol (REP), SmartPort technology, Parallel Redundancy Protocol (PRP), Bridge protocol data unit (BPDU), CIP Sync (IEEE 1588)Montare in rackDa
1U DIN RailMemorie1 GB RAMMemorie FLASH128 MBMetoda forwarding41.67 MppsSwitch capacity56 GbpsProtocoale de rutareIGMPv2, IGMP, IGMPv3, static IPv4 routingRemote Management ProtocolSNMP 1, SNMP 2, RMON 2, SNMP, RMON, Telnet, SNMP 3, HTTP, SSH, CLI, SCPPutere consumata (W)90 WDimensiuni445 x 44.5 x 385.6 mmGreutate5.46 kg
