Descriere

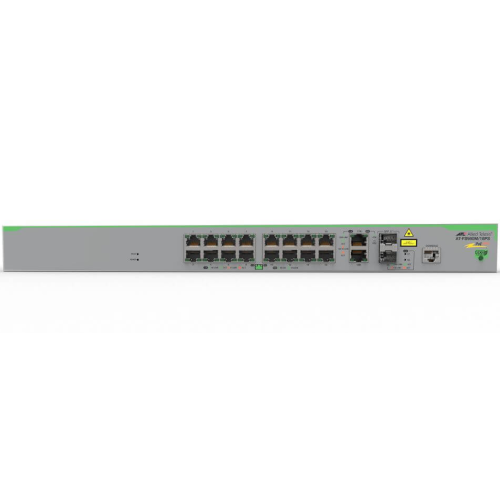

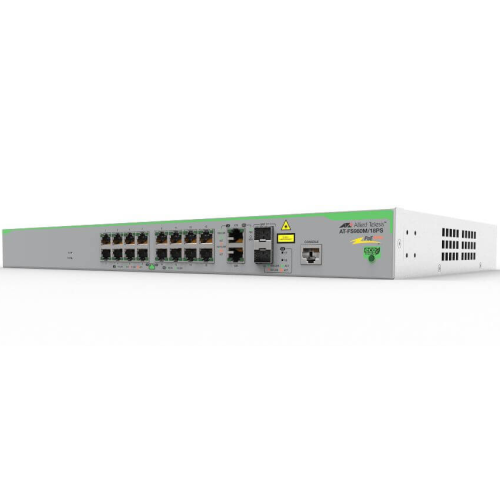

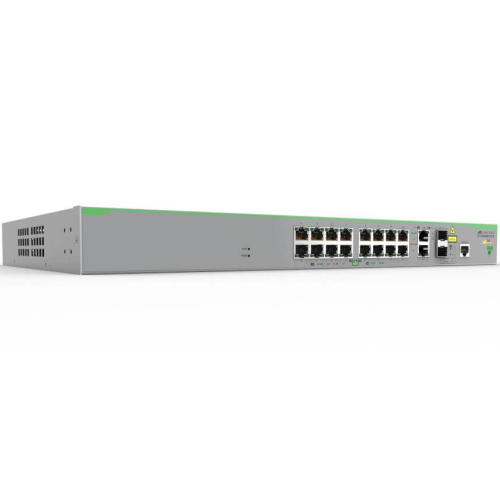

The FS980M/18PS features 16 x 10/100TX PoE+ ports and 2 combo (10/100/1000T or 100/1000X SFP) uplink ports.
The CentreCOM FS980M Series are cost-effective Fast Etherent switches for deployment at the network edge. As part of an Autonomous Management Framework™ (AMF) network, the FS980M switches utilize automated management and zero-touch recovery to lower running costs. Power over Ethernet delivers the full 30 watts of PoE+ to support video surveillance and wireless access applications.
Specificatii produs
-
Caracteristici generale
Tip SwitchRetea RJ45Numar Porturi16 x RJ45
2 x 1G RJ45/SFP (uplink)Viteza Transfer LAN100 MbpsTehnologie de cablareRJ45 Base-T
Base-XManagementDaLayerLayer 3PoEDa
PoE+PoE Budget250 WStandardeIEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3zSecuritateSSLv2 and SSLv3, SSH remote login, TACACS+ Accounting, Authentication, EEE 802.1X authentication protocols (TLS, TTLS, PEAP and MD5), IEEE 802.1X multi-supplicant authentication, IEEE 802.1X port-based network access controlTabela de adrese MAC16KStackableDaMontare in rackDaMemorie512 MB DDR2 SDRAMMemorie FLASH128 MBForwarding rate5.36 MppsSwitch capacity7.2 GbpsProtocoale de rutareIGMP snooping (IGMPv1, v2 and v3), IGMP query solicitation, IGMP snooping fast-leave, MLD snooping (MLDv1 and v2)Remote Management ProtocolSNMPv1, v2c and v3, AT Enterprise MIB including AMF MIB and SNMP traps, IEEE 802.1AB Link Layer Discovery Protocol (LLDP)Disipare calduraCu PoE: 320 BTU/h
Fara PoE: 82 BTU/hTensiune de intrare100 - 240 VAC, 4.0A maximum, 50/60HzAlimentareSursa internaPutere consumata (W)Cu PoE Max: 320 W
Fara PoE Max: 24 WNivel zgomot46 dBADimensiuni440 x 257 x 43.2 mmGreutate3.6 kg
