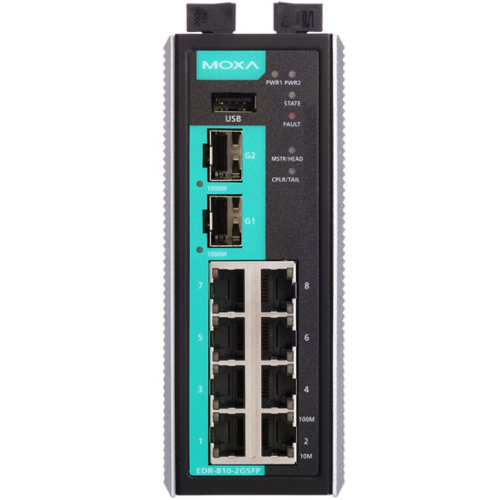

The EDR-810 is a highly integrated industrial multiport secure router with firewall/NAT/VPN and managed Layer 2 switch functions. It is designed for Ethernet-based security applications on critical remote control or monitoring networks, and it provides an electronic security perimeter for the protection of critical cyber assets including pump-and-treat systems in water stations, DCS systems in oil and gas applications, and PLC/SCADA systems in factory automation. The EDR-810 Series includes the following cybersecurity features:
- Firewall/NAT: Firewall policies control network traffic between different trust zones, and Network Address Translation (NAT) shields the internal LAN from unauthorized activity by outside hosts.
- VPN: Virtual Private Networking (VPN) is designed to provide users with secure communication tunnels when accessing a private network from the public Internet. VPNs use IPsec (IP Security) server or client mode for encryption and authentication of all IP packets at the network layer to ensure confidentiality and sender authentication.
The EDR-810’s “WAN Routing Quick Setting” provides an easy way for users to set up WAN and LAN ports to create a routing function in four steps. In addition, the EDR-810’s “Quick Automation Profile” gives engineers a simple way to configure the firewall filtering function with general automation protocols, including EtherNet/IP, Modbus TCP, EtherCAT, FOUNDATION Fieldbus, and PROFINET. Users can easily create a secure Ethernet network from a user-friendly web UI with a single click, and the EDR-810 is capable of performing deep Modbus TCP packet inspection. Wide-temperature range models that operate reliably in hazardous, -40 to 75°C environments are also available.
Specificatii produs
-
Caracteristici generale
UtilizareBusinessPorturi LAN8x LANPorturi LAN/WAN100 MbpsPorturi2 x SFPConsole Port1 x RS-232
1 x 3 pinViteza de transfer Ethernet1 GbpsStandardeIEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3zManagementBack Pressure Flow Control, DDNS, DHCP Server/Client, Web Console (HTTP/HTTPS), LLDP, QoS/CoS/ToS, SNMPv1/v2c/v3, Telnet, TFTPProtocoale suportateRSTP, STP, Turbo Ring v2SecuritateHTTPS/SSL, SSH, L2TP (server), RADIUSFirewallDDoS, Ethernet protocols, ICMP, IP address, MAC address, Ports
DNP, EtherCAT, EtherNet/IP, FOUNDATION Fieldbus, FTP, HTTP, IEC 60870-104, IPsec, L2TP, LonWorks, Modbus TCP, PPTP, PROFINET, RADIUS, SSH, Telnet
Router firewall
Transparent (bridge) firewallFunctii LEDSTATE, PWR1, PWR2, FAULT, 10/100/1000MRack-mountableDIN RailAlimentare12 - 48 VDC
NU este inclusa!Dimensiuni53.6 x 135 x 105 mmGreutate830 gCuloareArgintiuContinut pachetRouter
Cablu DB9 la RJ45 10 pin
4 x Capac plastic pentru port RJ45
2 x Capac plastic pentru port SFP
DocumentatieTemperatura de functionare-10 - 60°C
