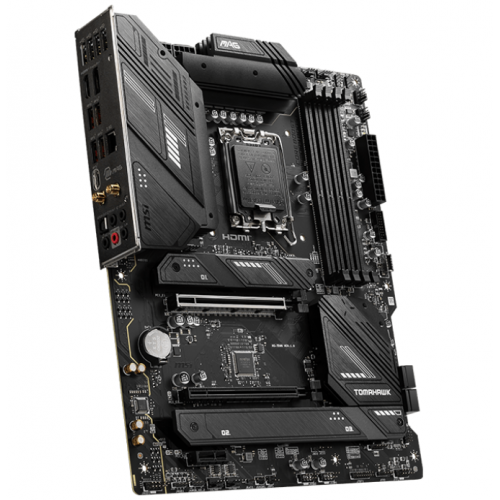

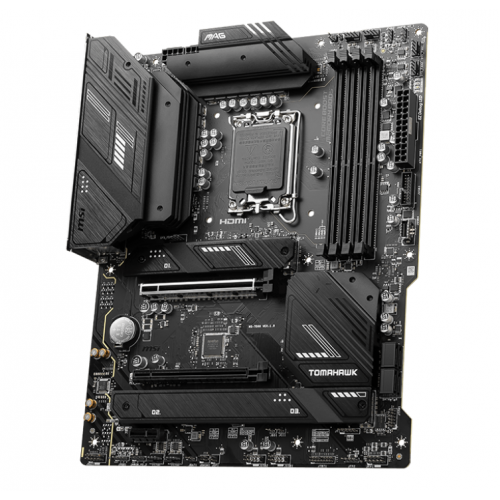

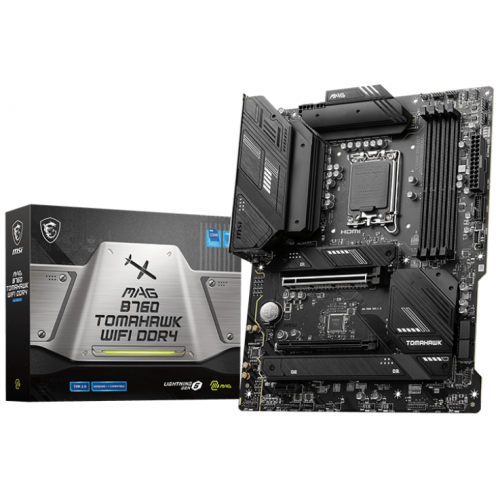

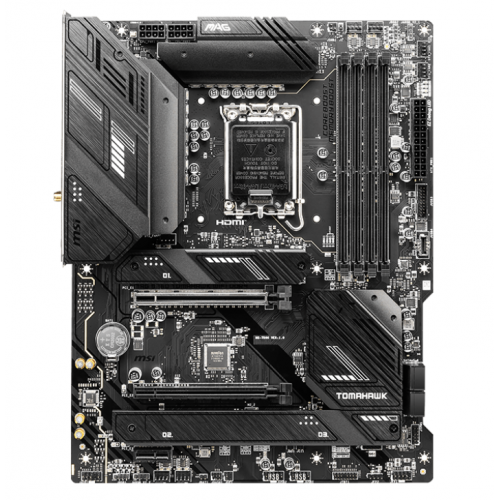

Placa de baza MSI MAG B760 TOMAHAWK WIFI DDR4, Intel B760, Socket 1700, ATX
- Producator: MSI
- Garantie: 36 luni
- Cod produs:
DESCRIERE PRODUS
MB MSI Intel 1700 MAG B760 TOMAHAWK WIFI DDR4
Specificatii produs
-
General
Recomandat GamingDaPlaca audio integrata7.1 Audio with Realtek ALC897Chipset audioRealtek ALC897RAID0, 1, 5, 10Placa video integrataNecesita procesor cu tehnologia Intel Integrated GraphicsPlaca retea integrata10/100/1000/2500 MbpsChipset reteaRealtek 2.5GbE LANInterfata graficaPCI Express x16 5.0SATA III4NGFF (M.2)3 -
Procesor
CPU Socket1700ChipsetB760Producator chipsetIntelProcesoare suportateIntel 13th Generation Core/Pentium Gold/Celeron
Intel 12th Generation Core/Pentium Gold/Celeron -
Memorie
Model memorieDDR4Capacitate maxima memorie RAM128 GBTehnologieDual channelFrecvente suportate5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHzSloturi memorie4Alte specificatiiSuport Intel Extreme Memory Profile (XMP) -
Conectivitate

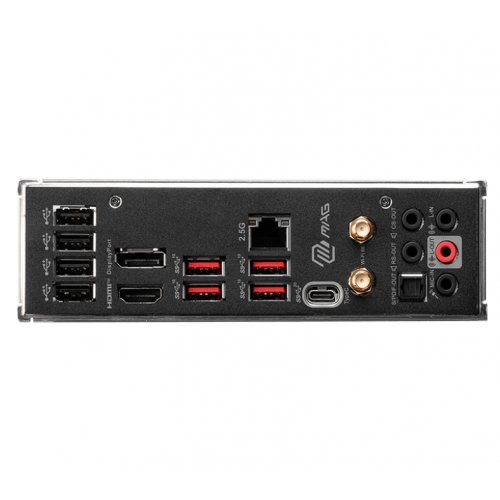

Iesire optica S/PDIF1HDMI1DisplayPort1RJ-451USB 2.04USB 3.2 Gen2 tip A4USB tip C1 x USB 3.2 Gen 2x2 tip CSuport audio7.1Audio jacks5Wireless2 x Conectori antena Wi-Fi
Wi-Fi 802.11 a/b/g/n/ac/ax (2x2), supporting 2.4/5/6 GHzBluetooth5.3 -
Sloturi
PCI Express 3.01 (x4)PCI Express 4.01 (x1)PCI Express 5.01 (x16)Header USB 3.0Da -
Specificatii Fizice
FormatATXDimensiuni (L x l, cm)30.48 x 24.38 cm
-
