Descriere

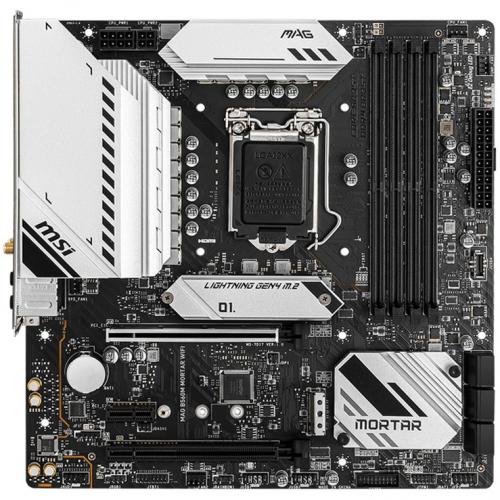

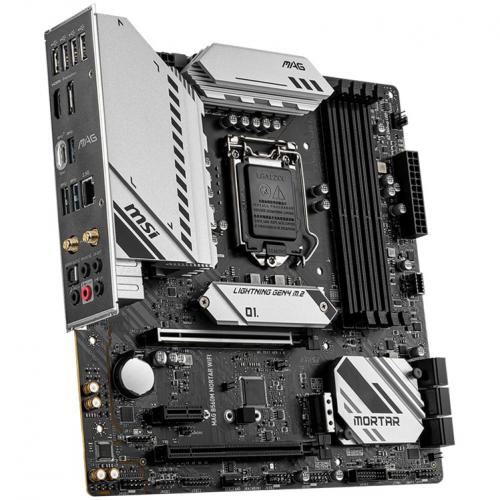

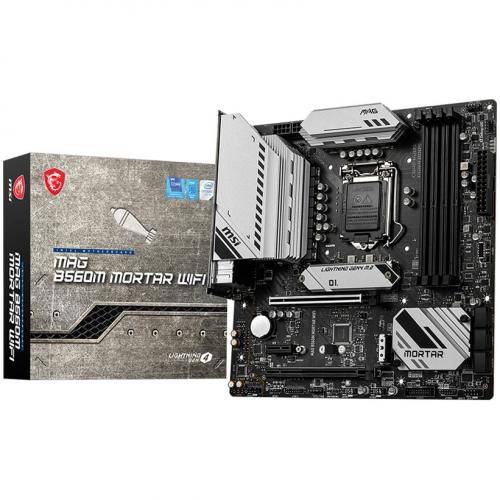

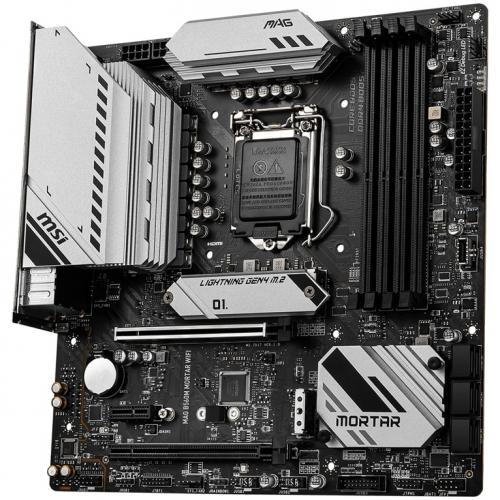

Placa de baza MSI MAG B560M MORTAR WIFI LGA 1200 911-7D17-013 / 4719072802929 SPECIFICATIONS Model Name MAG B560M MORTAR WIFI CPU Support Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors CPU Socket LGA 1200 Chipset Intel® B560 Chipset Graphics Interface 1x PCIe 4.0 x16 slot 1x PCIe 3.0 x16 slot Support 2 way AMD® CrossFire™ Technology Display Interface HDMI, Displayport – Requires Processor Graphics Memory Support 4 DIMMs, Dual Channel DDR4-5066(OC)Mhz Expansion Slots 1x PCIe 3.0 x1 slot Storage 1x M.2 Gen4 x4 slot, 1x M.2 Gen3 x4 slots 6x SATA 6Gb/s ports USB ports 1x USB3.2 Gen 2x2 20Gbps (Type-C) 1x USB 3.2 Gen 2 10Gbps (Type-C) 5x USB 3.2 Gen 1 5Gbps (Type-A) 8x USB 2.0 LAN Realtek® 8125B 2.5G LAN Wi-Fi/Bluetooth Intel® Wi-Fi 6E AX210, Bluetooth 5.2 Audio 8-Channel (7.1) HD Audio with Audio Boost(ALC897) https://www.msi.com/Motherboard/MAG-B560M-MORTAR-WIFI/Specification
Specificatii produs
-
General
Recomandat GamingDaPlaca audio integrata7.1 Audio with Realtek ALC897Chipset audioRealtek ALC892/ALC897Placa video integrataNecesita procesor cu tehnologia Intel HD GraphicsPlaca retea integrata10/100/1000/2500 MbpsChipset reteaRealtek RTL8125BInterfata graficaPCI Express x16 4.0SATA III6NGFF (M.2)2 -
Procesor
CPU Socket1200ChipsetB560Producator chipsetIntelProcesoare suportateIntel 11th Generation Core/Pentium/Celeron
Intel 10th Generation Core/Pentium/Celeron -
Memorie
Model memorieDDR4Capacitate maxima memorie RAM128 GBTehnologieDual channelFrecvente suportate5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHzSloturi memorie4 -
Conectivitate
Iesire optica S/PDIF1HDMI1DisplayPort1RJ-451USB 2.04USB 3.2 Gen1 tip A3USB tip C1 x USB 3.2 Gen 2x2 tip CSuport audio7.1Audio jacks5WirelessWi-Fi 802.11 a/b/g/n/ac, supporting 2.4/6 GHz Dual-BandBluetooth5.2Conectori speciali2x Conectori antena Wi-Fi -
Sloturi
PCI Express x11PCI Express 3.01 (x4)PCI Express 4.01 (x16) -
Specificatii Fizice
FormatmATXDimensiuni (L x l, cm)30.5 x 24.4 cm
