Descriere

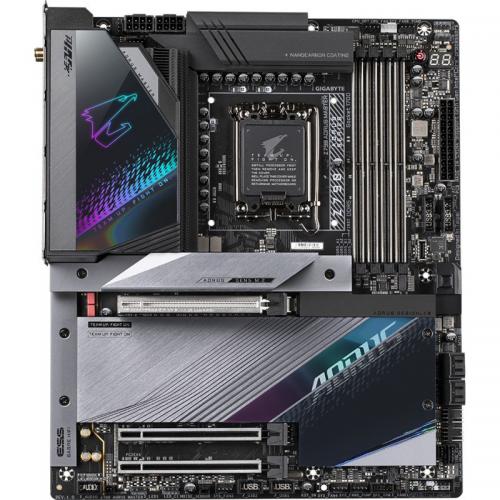

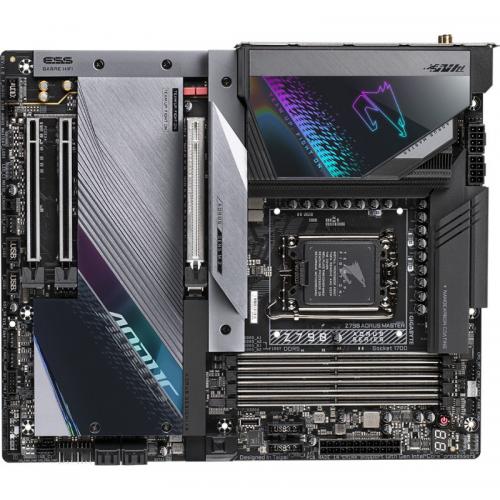

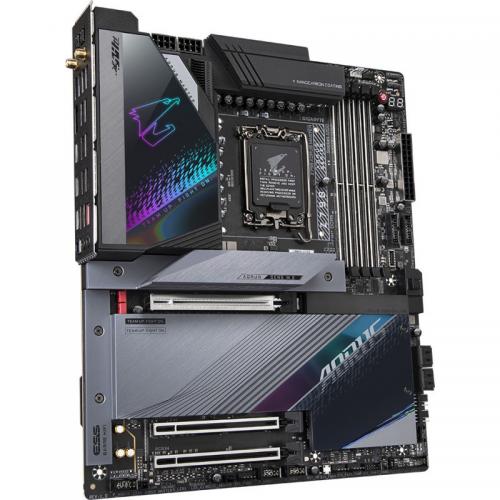

Z790 AORUS MASTER | Socket LGA1700 | 4 x DDR5 DIMM (up to 128GB) | Audio Realtek® ALC1220-VB codec | ESS ES9118 DAC chip |Support for DTS:X® Ultra | Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) | Intel® Wi-Fi 6E AX1690| 1 x PCI Express x16, 1x PCI Express x4, 1x PCI Express x1| 5 x M.2 Socket, 4 x SATA 6Gb/s | RAID 0, RAID 1, RAID 5, RAID 10 | 1 x Q-Flash Plus button, 1 x Clear CMOS button, 2 x SMA antenna connectors (2T2R), 1 x DisplayPort, 1 x USB Type-C® port, with USB 3.2 Gen 1 support, 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support, 7 x USB 3.2 Gen 2 Type-A ports (red), 4 x USB 3.2 Gen 1 ports, 1 x RJ-45 port
1 x optical S/PDIF Out connector, 2 x audio jacks | E-ATX
Specificatii produs
-
General
Recomandat GamingDaPlaca audio integrata7.1 Audio with RealtekChipset audioRealtek ALC1220-VBRAID0, 1, 5, 10Placa video integrataNecesita procesor cu tehnologia Intel HD GraphicsPlaca retea integrata10/100/1000/2500/5000/10000 MbpsChipset reteaMarvell® AQtion AQC113C 10GbEBIOS256Mb AMI UEFI BIOSInterfata graficaPCI Express x16 5.0SATA III4NGFF (M.2)5 -
Procesor
CPU Socket1700ChipsetZ790Producator chipsetIntelProcesoare suportateIntel 12th/13th Generation Core/Pentium Gold/Celeron -
Memorie
Model memorieDDR5Capacitate maxima memorie RAM128 GBTehnologieDual channelFrecvente suportate8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000Sloturi memorie4 -
Conectivitate
Iesire optica S/PDIF1Clear CMOS1DisplayPort1RJ-451USB 3.2 Gen1 tip A4USB 3.2 Gen2 tip A7USB tip C3 x USB 3.2 Gen 2x2 tip CSuport audio7.1WirelessWi-Fi 802.11 a/b/g/n/ac/ax, supporting 2.4/5/6 GHzBluetooth5.3 -
Sloturi
PCI Express 4.02 (x4 / x4)PCI Express 5.01Multi-GPU CrossfireXSuporta AMD Quad-GPU CrossFire (PCIEX16 and PCIEX4) -
Specificatii Fizice
FormateATX
