Descriere
Z690 Chipset | Socket 1700 | 4x DDR4 DIMM (up to 128GB) | Audio Realtek Audio Codec | Realtek 2.5GbE | 1x PCI Express x16, 1 x PCI Express x16 slot, running at x4 (PCIEX4), 1 x PCI Express x16 slot, running at x1 (PCIEX1_4), 2 x PCI Express x1 slots | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies| 3 x M.2 PCIe x4 I | 6x SATA 6GB/s | RAID 0, 1, 5, 10 | Intel Optane Memory Ready | 1x PS/2, 1x DisplayPort, 1 x HDMI, 4x USB 3.2 Gen 1, 1x USB 3.2 Gen 2, 4x USB 2.0, 1x RJ-45, 3x audio jacks | ATX
Specificatii produs
-
General
Recomandat GamingDaPlaca audio integrata7.1 Audio with RealtekChipset audioRealtekRAID0, 1, 5, 10Placa video integrataNecesita procesor cu tehnologia Intel HD GraphicsPlaca retea integrata10/100/1000/2500 MbpsChipset reteaRealtekBIOS1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Interfata graficaPCI Express x16 5.0SATA III6NGFF (M.2)2 -
Procesor
CPU Socket1700ChipsetZ690Producator chipsetIntelProcesoare suportateIntel 12th Generation Core/Pentium Gold/Celeron -
Memorie
Model memorieDDR4Capacitate maxima memorie RAM128 GBTehnologieDual channelFrecvente suportate5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHzSloturi memorie4 -
Conectivitate

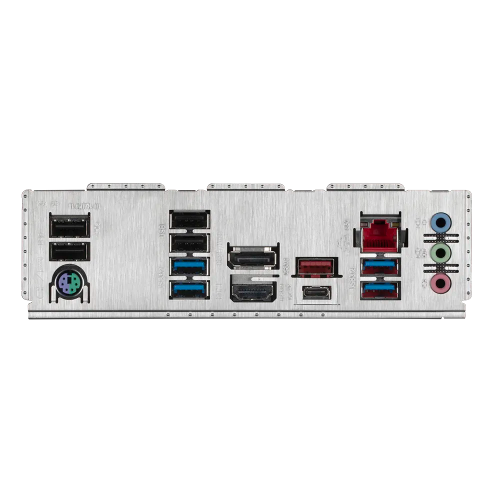

Iesire optica S/PDIF1HDMI1DisplayPort1RJ-451USB 2.04USB 3.2 Gen1 tip A4USB 3.2 Gen2 tip A1USB tip C1 x USB 3.2 Gen 2x2 tip CSuport audio7.1Audio jacks3PS/2 Combo Mouse/Tastatura1BIOS FlashbackDa -
Sloturi
PCI Express x12PCI Express 3.02 (x4 / x1)PCI Express 5.01 -
Specificatii Fizice
FormatATX
Review-uri (1 Review-uri))
Acordati numarul de stele corespunzator parerii dumneavoastra despre produs, urmarind explicatia din partea dreapta.
Spuneti-ne parerea despre produs.
-
Foarte ok produsul dupa un update de BIOS
Pro:Produsul l-am cumparat la cel mai bun pret de pe FLAX
Contra:Nu am. Am primit exact ce am cerut
Foarte multumit de achizitie
Produse similare
Extinde garantia produsului
Extinde perioada de garantie cu unul sau doi ani peste perioada de garantie standard oferita de producatori.
Adauga review

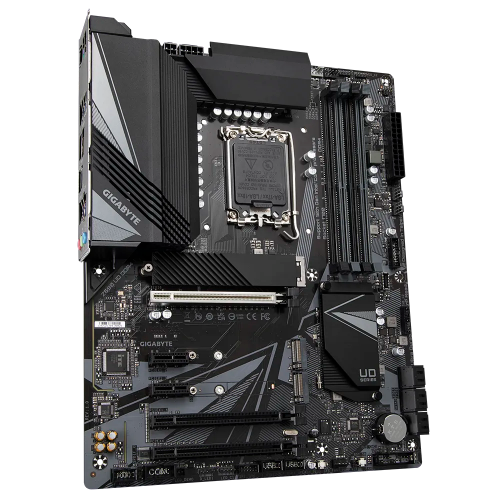

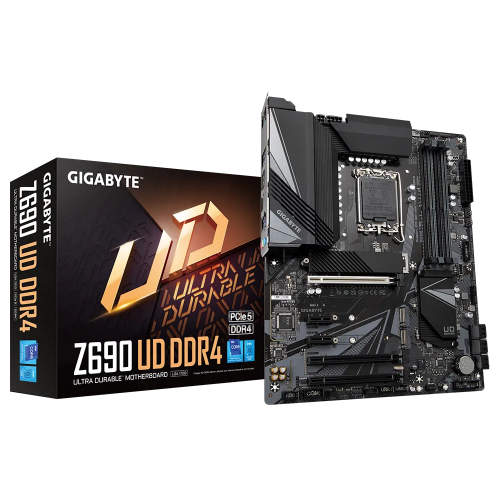

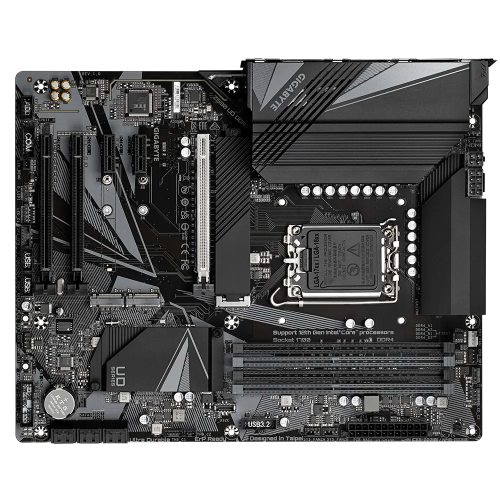

Placa de baza GIGABYTE Z690 UD DDR4, Intel Z690, socket 1700, ATX
