Descriere

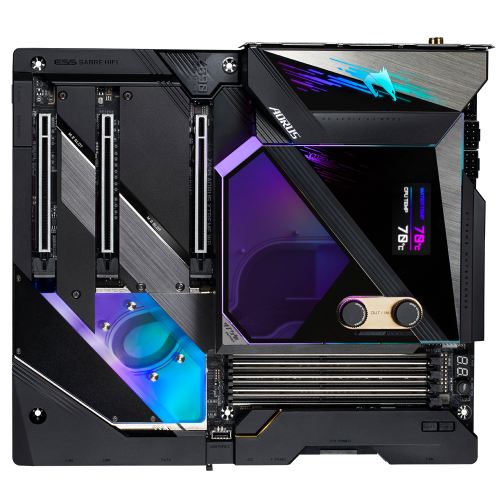

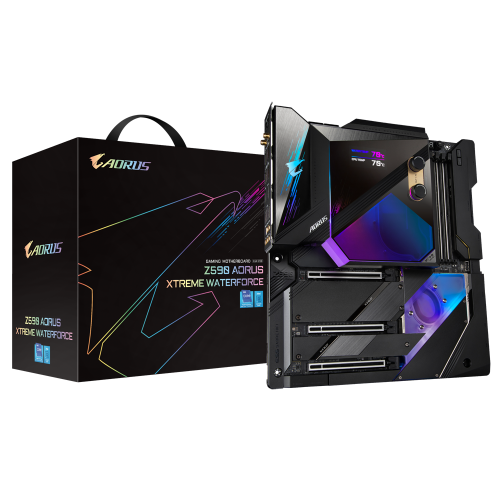

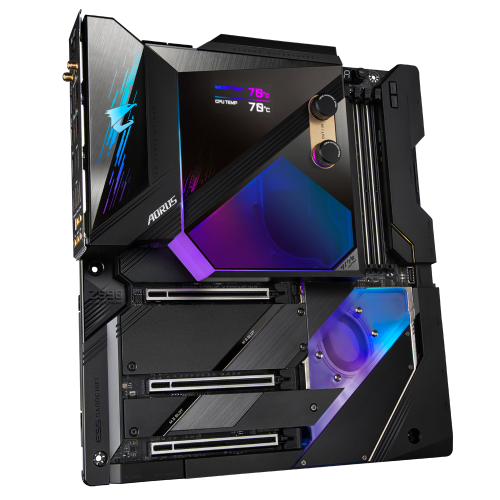

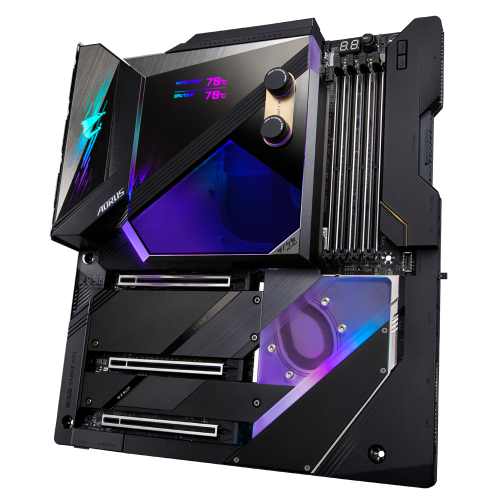

Intel Z590 Chipset | Socket LGA1200 | 4 x DDR4 DIMM (up to 128GB) | 2 x Audio Realtek® ALC1220-VB code+ESS ES9018K2M DAC+TI OPA1622 operational amplifier | 1 x Aquantia 10GbE LAN chip | 1 x Intel 2.5 GbE LAN chip | Intel® Wi-Fi 6E AX210| 1 x PCI Express x16, 1x PCI Express x8, 1x PCIe x4 | 3 x M.2 Socket, 6 x SATA 6Gb/s | RAID 0, RAID 1, RAID 5, RAID 10 | Intel Optane Memory Ready | 1 x Q-Flash Plus button,1 x Clear CMOS button,2 x SMA antenna connectors (2T2R),2 x Thunderbolt™ 4 connector (USB Type-C® port, with USB 3.2 Gen 2 support),8 x USB 3.2 Gen 2 Type-A ports (red), 1 x HDMI port,2 x RJ-45 port,1 x optical S/PDIF Out connector,5 x audio jacks, E-ATX Form Factor; 30.5cm x 27cm
Specificatii produs
-
General
Recomandat GamingDaPlaca audio integrata7.1 Audio with Realtek ALC1220-VBChipset audioRealtek ALC1220-VBRAID0, 1, 5, 10Placa video integrataNecesita procesor cu tehnologia Intel HD GraphicsPlaca retea integrata10/100/1000/2500/5000/10000 Mbps
10/100/1000/2500 MbpsChipset reteaAquantia 10GbE
Intel 2.5GbEBIOS2 x 256 Mbit flashInterfata graficaPCI Express x16 4.0SATA III6NGFF (M.2)3 -
Procesor
CPU Socket1200ChipsetZ590Producator chipsetIntelProcesoare suportateIntel 11th Generation Core/Pentium/Celeron
Intel 10th Generation Core/Pentium/Celeron -
Memorie
Model memorieDDR4Capacitate maxima memorie RAM128 GBTehnologieDual channelFrecvente suportate5400 (O.C) / DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHzSloturi memorie4 -
Conectivitate
Iesire optica S/PDIF1Clear CMOS1HDMI1RJ-452USB 3.1 tip A8USB 3.1 tip C2Suport audio7.1Audio jacks5WirelessWi-Fi 802.11 a/b/g/n/ac/ax, supporting 2.4/5/6 GHzBluetoothBluetooth 5.2Thunderbolt2x Intel Thunderbolt 4Conectori speciali2 x SMA (2T2R) conectori antena
1 x BIOS FlashBack -
Sloturi
PCI Express 3.01 (x4)PCI Express 4.02 (x16 / x0 , x8 / x8)Multi-GPU CrossfireXSupport for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologiesHeader USB 3.0Da -
Specificatii Fizice
FormateATXDimensiuni (L x l, cm)30.5 x 27 cm
