Descriere

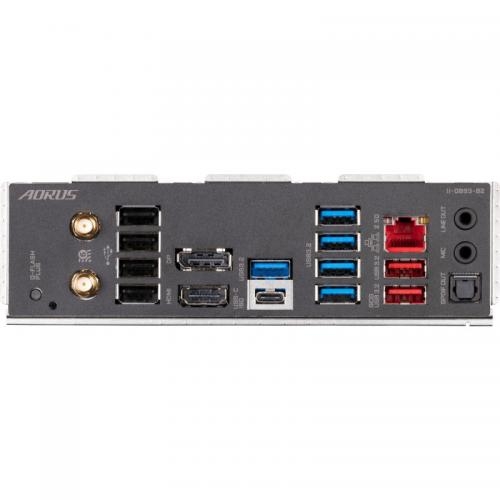

B650M AORUS ELITE AX | Socket AM5 | 4 x DDR5 DIMM (up to 128GB) | Audio Realtek® Audio CODEC | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | Intel® Wi-Fi 6E RZ616 | 1 x PCI Express x16, 1x PCI Express x1| 2 x M.2 Socket, 4 x SATA 6Gb/s | RAID 0, RAID 1, RAID 5, RAID 10 | 1 x Q-Flash Plus button, 2 x SMA antenna connectors (2T2R),1 x DisplayPort, 1 x HDMI port, 1 x USB Type-C® port, with USB 3.2 Gen 2 support, 2 x USB 3.2 Gen 2 Type-A ports (red), 5 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 1 x optical S/PDIF Out connector
2 x audio jacks | Micro ATX
Specificatii produs
-
General
Recomandat GamingDaInterfata graficaPCI Express x16 4.0Placa video integrataNecesita procesor cu tehnologia AMD Radeon GraphicsPlaca retea integrata2.5 GbpsChipset reteaRealtek 2.5GbEPlaca audio integrata7.1 Audio with RealtekChipset audioRealtekRAID0, 1, 10SATA III4NGFF (M.2)2Alte specificatiiPentru AMD AM5 Socket Ryzen 9000 Series necesita update de BIOS -
Procesor
Socket ProcesorAM5ChipsetB650Producator chipsetAMDProcesoare suportateAMD AM5 Socket Ryzen 7000 Series -
Memorie
Memorie SuportataDDR5Capacitate maxima memorie RAM128 GBTehnologieDual channelFrecvente suportate6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MHzSloturi memorie4 -
Sloturi
PCI Express 4.02 (x16 / x4) -
Conectivitate
HDMI1DisplayPort1RJ-451USB 2.04USB 3.2 Gen1 tip A5USB 3.2 Gen2 tip A2USB tip C1 x USB 3.2 Gen 2 tip CSuport audio7.1WirelessWi-Fi 802.11 a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-BandBluetoothBluetooth 5.2BIOS Flashback1 x Q-Flash Plus button -
Specificatii Fizice
FormatmATX
