Descriere

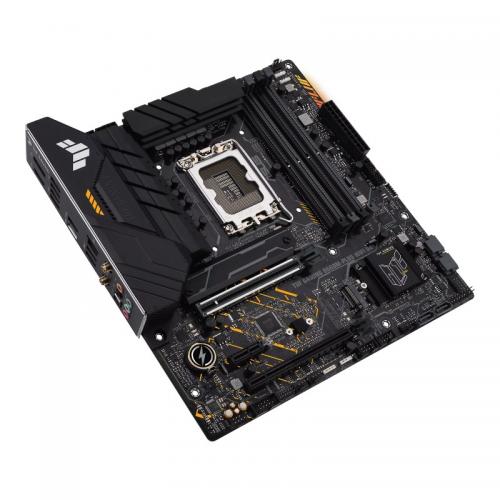

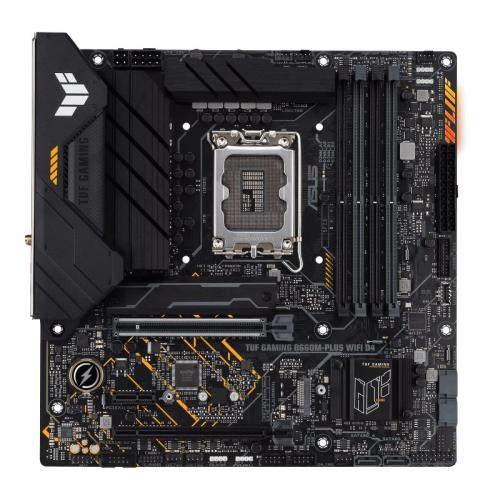

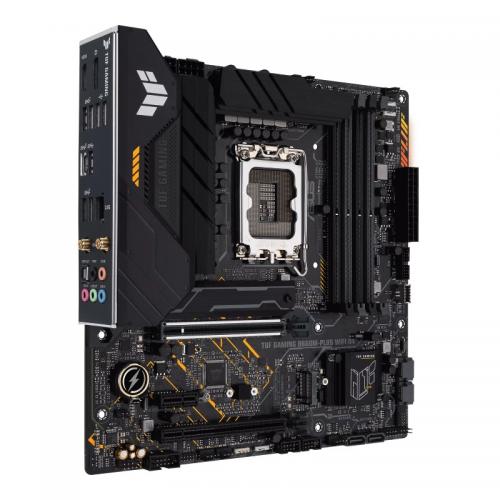

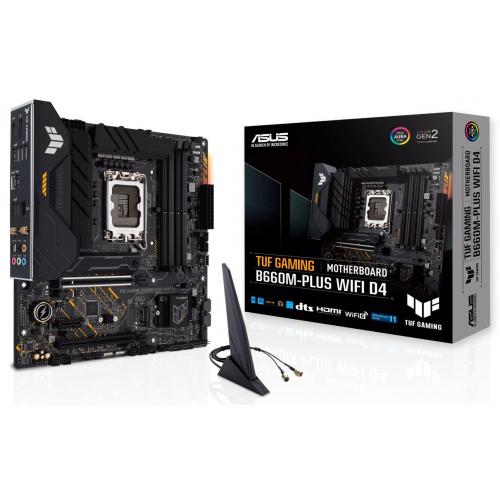

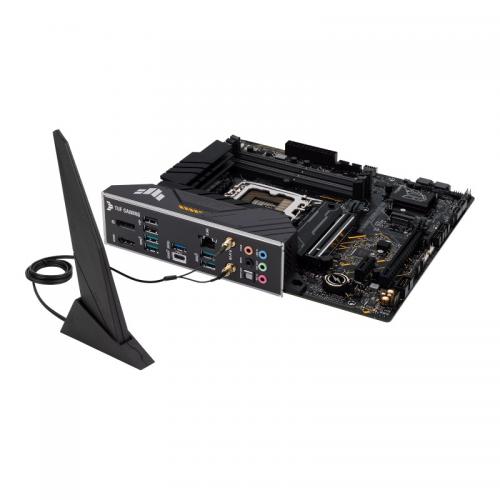

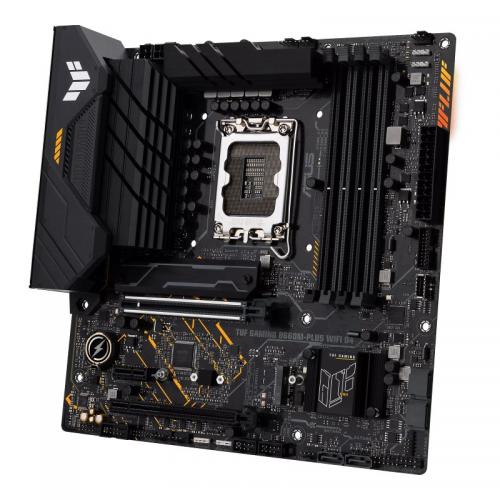

Placa de baza Asus TUF GAMING B660M-PLUS WIFI D4 Intel® B660 (LGA 1700) mATX motherboard, 10+1 DrMOS Power stages , PCIe 5.0 support, DDR4 5333 (OC), Dual PCIe 4.0 M.2 Slots with Flexible Heatsink, Intel® Wi-Fi 6, Realtek 2.5Gb Ethernet, Rear USB 3.2 Gen 2x2 Type-C®, Front USB 3.2 Gen 1 Type-C®, Aura Sync, Two-way AI Noise Cancelation Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors Enhanced power solution: 10+1 DrMOS power stages, six-layer PCB, 8+4 ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability Comprehensive cooling: Enlarged VRM heatsink, Stack Cool 3+, Flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+ Latest connectivity: PCIe 5.0 slot, PCIe 4.0 M.2 slots, rear USB 3.2 Gen 2x2 Type-C®, front panel header for USB 3.2 Gen 1 Type-C® and Thunderbolt 4™ support Made for online gaming: Intel® WiFi 6, Realtek 2.5Gb Ethernet, TUF LANGuard Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences https://www.asus.com/Motherboards-Components/Motherboards/TUF- Gaming/TUF-Gaming-B660M-PLUS-WIFI-D4/
Specificatii produs
-
General
Recomandat GamingDaPlaca audio integrata7.1 Audio with Realtek ALC897Chipset audioRealtek ALC897RAID0, 1, 5, 10Placa video integrataNecesita procesor cu tehnologia Intel HD GraphicsPlaca retea integrata10/100/1000/2500 MbpsChipset reteaRealtek 2.5GbE LANBIOS128 Mb Flash ROM, UEFI AMI BIOSInterfata graficaPCI Express x16 5.0SATA III4NGFF (M.2)2 -
Procesor
CPU Socket1700ChipsetB660Producator chipsetIntelProcesoare suportateIntel 12th Generation Core/Pentium Gold/Celeron -
Memorie
Model memorieDDR4Capacitate maxima memorie RAM128 GBTehnologieDual channelFrecvente suportate5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHzSloturi memorie4 -
Conectivitate

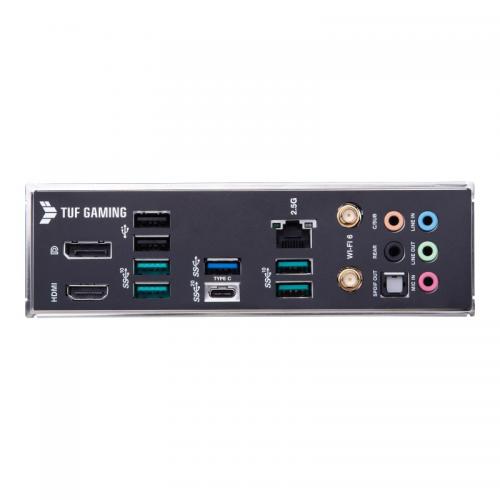

Iesire optica S/PDIF1HDMI1DisplayPort1RJ-451USB 2.02USB 3.2 Gen1 tip A1USB 3.2 Gen2 tip A4USB tip C1 x USB 3.2 Gen 2x2 tip CSuport audio7.1Audio jacks5WirelessWi-Fi 802.11 a/b/g/n/ac/ax (2x2), supporting 2.4/5 GHzBluetooth5.2Conectori speciali1x Modul WiFi -
Sloturi
PCI Express x11PCI Express 3.01 (x4)PCI Express 5.01 (x16)Header USB 3.0Da -
Specificatii Fizice
FormatmATXDimensiuni (L x l, cm)24.4 x 24.4 cm
