Descriere

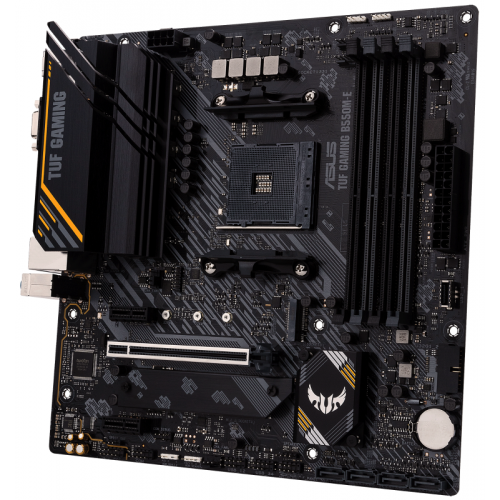

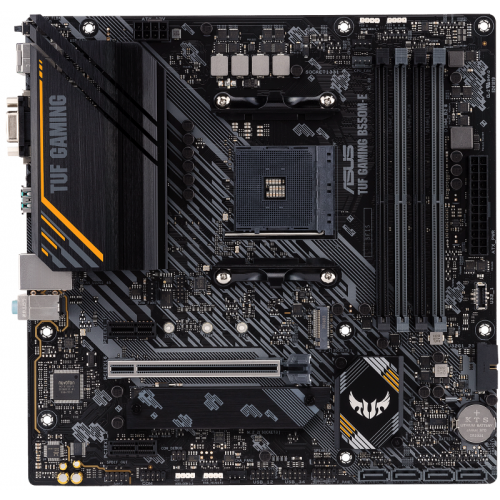

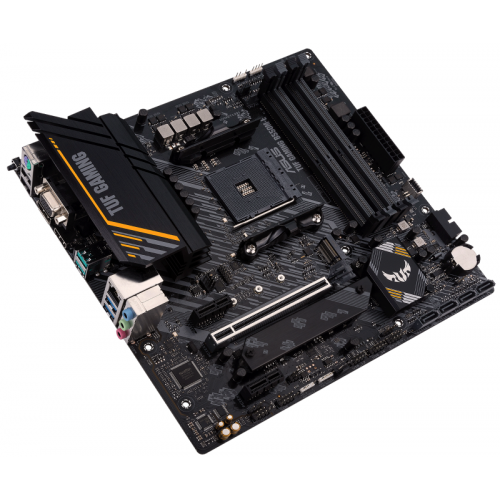

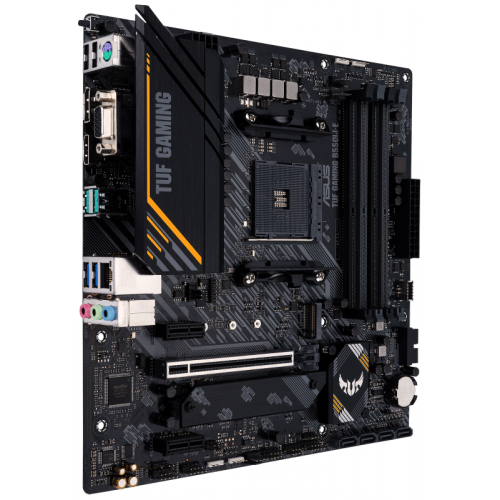

Placa de baza Asus TUF GAMING B550M-E AM4 AMD B550 (Ryzen AM4) micro ATX gaming motherboard with PCIe 4.0, dual M.2, DisplayPort, HDMI, D-Sub, SATA 6 Gbps, USB 3.2 Gen 2 Type-A, front USB 3.2 Gen 1 Type-C®, BIOS FlashBack™, and Aura Sync RGB lighting support AMD AM4 Socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors Enhanced Power Solution: Alloy Chokes, military-grade TUF components, and DIGI+ VRM for maximum durability Comprehensive Cooling: Large VRM heatsink, M.2 heatsink, PCH fanless heatsink, hybrid fan headers, and Fan Xpert 2+ utility Ultrafast Connectivity: Dual M.2, PCIe 4.0, USB 3.2 Gen 2 Type-A, and front USB 3.2 Gen 1 Type-C® support Made for Online Gaming: 1 Gb Ethernet, TUF LANGuard and Turbo LAN technology Aura Sync RGB Lighting: Onboard addressable Gen 2 headers and RGB headers for RGB LED strips, easily synced with Aura Sync-capable hardware
Specificatii produs
-
General
Recomandat GamingDaPlaca audio integrata7.1 Audio with Realtek ALC887/ALC897Chipset audioRealtek ALC887/ALC897RAID0, 1, 10Placa video integrataNecesita procesor cu tehnologia AMD Radeon Vega GraphicsPlaca retea integrata10/100/1000 MbpsChipset reteaRealtek 1Gb LANInterfata graficaPCI Express x16 4.0SATA III4NGFF (M.2)2 -
Procesor
CPU SocketAM4ChipsetB550Producator chipsetAMDProcesoare suportateAMD AM4 Socket Ryzen 5000 Series/ AMD Ryzen 3000 Series
AMD Ryzen 4000 G-Series -
Memorie
Model memorieDDR4Capacitate maxima memorie RAM128 GBTehnologieDual channelFrecvente suportate4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHzSloturi memorie4 -
Conectivitate

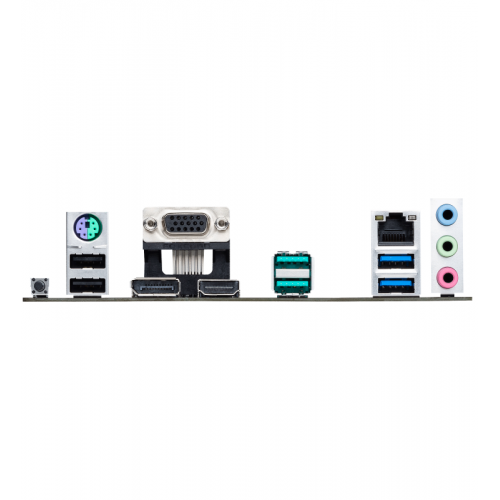

DVI1HDMI1DisplayPort1RJ-451USB 2.02USB 3.02USB 3.1 tip A2Suport audio7.1Audio jacks3PS/2 Combo Mouse/Tastatura1Conectori speciali1 x BIOS FlashBack button -
Sloturi
PCI Express x12PCI Express 4.01 (x16)Header USB 3.0Da -
Specificatii Fizice
FormatmATXDimensiuni (L x l, cm)24.4 x 24.4 cm
