Descriere

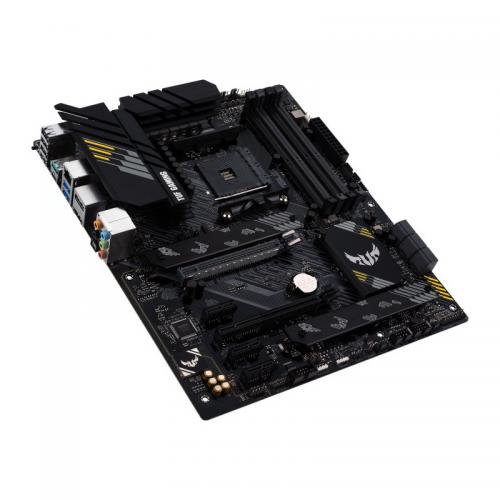

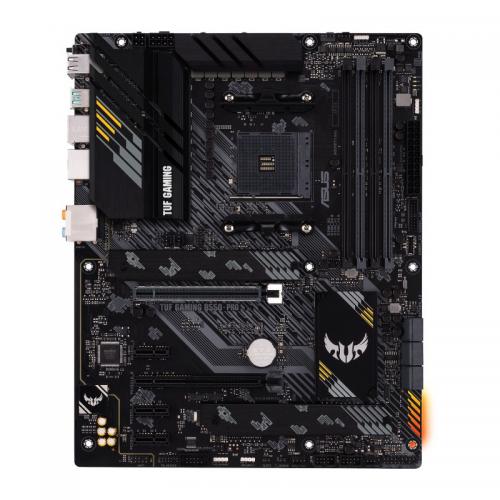

Placa de baza Asus TUF GAMING B550-PRO AM4 AMD B550 (Ryzen AM4) ATX gaming motherboard with PCIe 4.0, dual M.2, 14 DrMOS power stages, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, Front USB Type-C®, USB 3.2 Gen 2 Type-A and Type-C®, and Aura Sync RGB lighting support AMD AM4 socket: Ready for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series desktop processors Enhanced power solution: 12+2 DrMOS power stages, 8+4 pin ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability Comprehensive cooling: VRM heatsink, PCH fanless heatsink,dual M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility Next-gen connectivity: PCIe 4.0 M.2,Front USB Type-C®, USB 3.2 Gen 2 Type-A and Type-C® support Made for online gaming: 2.5 Gb Ethernet, TUF LANGuard, and Turbo LAN technology Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in Two-Way AI Noise Cancelation: Provides crystal-clear in-game voice communication
Specificatii produs
-
General
Recomandat GamingDaPlaca audio integrata7.1 Audio with Realtek S1200AChipset audioRealtek S1200ARAID0, 1, 10Placa video integrataNecesita procesor cu tehnologia AMD Radeon Vega GraphicsPlaca retea integrata10/100/1000/2500 MbpsChipset reteaRealtek RTL8125B 2.5GbEInterfata graficaPCI Express x16 4.0SATA III6NGFF (M.2)2 -
Procesor
CPU SocketAM4ChipsetB550Producator chipsetAMDProcesoare suportateAMD AM4 Socket Ryzen™ 3000/5000 Series
Nu este compatibila cu AMD Ryzen 5 3400G și Ryzen 3 3200G -
Memorie
Model memorieDDR4Capacitate maxima memorie RAM128 GBTehnologieDual channelFrecvente suportate4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHzSloturi memorie4 -
Conectivitate

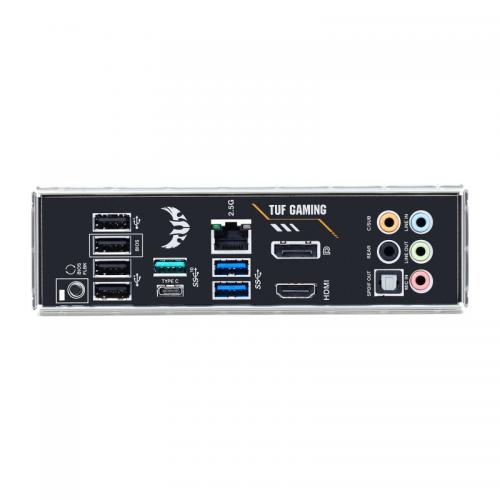

Iesire optica S/PDIF1HDMI1DisplayPort1RJ-451USB 2.04USB 3.02USB 3.1 tip A1USB 3.1 tip C1Suport audio7.1Conectori speciali1x BIOS Flashback Button -
Sloturi
PCI Express x13PCI Express 3.01 (x4)PCI Express 4.01 (x16)Multi-GPU CrossfireXSupports AMD 2-Way CrossFireX™ Technology -
Specificatii Fizice
FormatATX
