Descriere

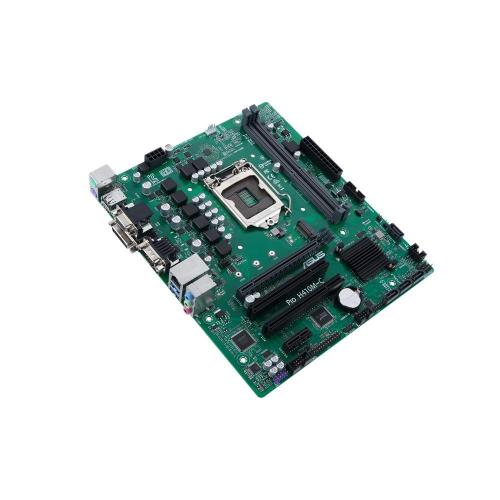

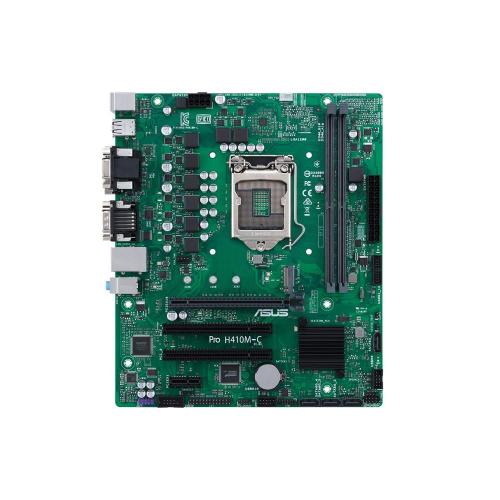

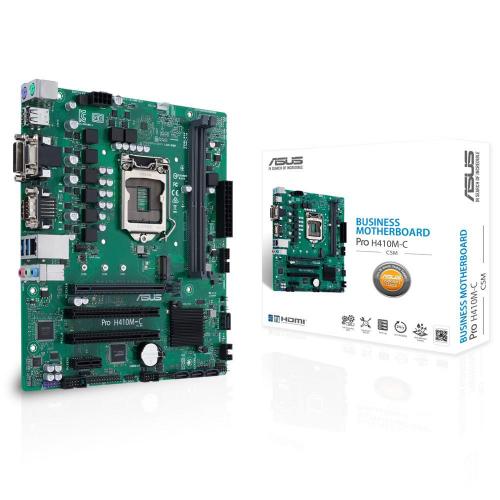

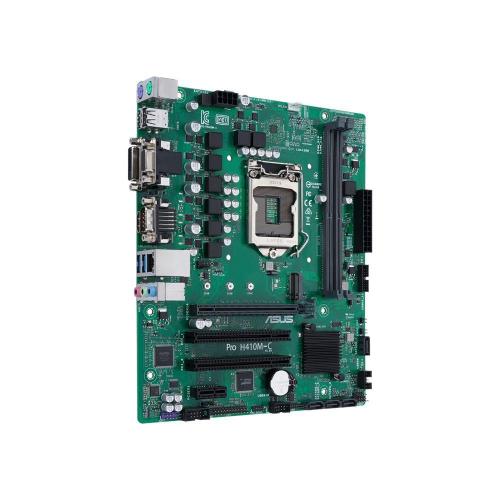

Placa de baza Asus PRO H410M-C/CSM Socket LGA 1200 CPU Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors * Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® H410 Memory 2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un- buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphic Integrated Graphics Processor *1 1 x D-Sub 1 x DVI-D 1 x HDMI 1.4b *Graphics specifications may vary between CPU types. Expansion Slots 16-Lane CPU- 1 x PCIe 3.0/2.0 x16 (x16 mode) Intel® H410 Chipset 1 x PCIe 3.0/2.0 x1 2 x PCI Storage Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports Intel® B460 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*2 4 x SATA 6Gb/s port(s) LAN Intel® I219V, 1 x Gigabit LAN Controller(s) ASUS LANGuard Audio Realtek ALC887 7.1-Channel High Definition Audio CODEC *3 - Supports : Jack-detection, Multi-recording, Front Panel Jack- retasking, up to 24-Bit/192kHz playback mATX Form Factor 9.6 inch x 8.2 inch ( 24.4 cm x 20.8 cm ) https://www.asus.com/Motherboards/Pro-H410M-C-CSM/specifications/
Specificatii produs
-
General
Recomandat GamingDaPlaca audio integrata7.1 Audio with Realtek ALC887Chipset audioRealtek ALC887Placa video integrataNecesita procesor cu tehnologia Intel HD GraphicsPlaca retea integrata10/100/1000 MbpsChipset reteaIntel I219VInterfata graficaPCI Express x16 3.0SATA III4NGFF (M.2)1 -
Procesor
CPU Socket1200ChipsetH410Producator chipsetIntelProcesoare suportateIntel 10th Generation Core/Pentium/Celeron -
Memorie
Model memorieDDR4Capacitate maxima memorie RAM64 GBTehnologieDual channelFrecvente suportate2933/2800/2666/2400/2133 MHzSloturi memorie2 -
Conectivitate

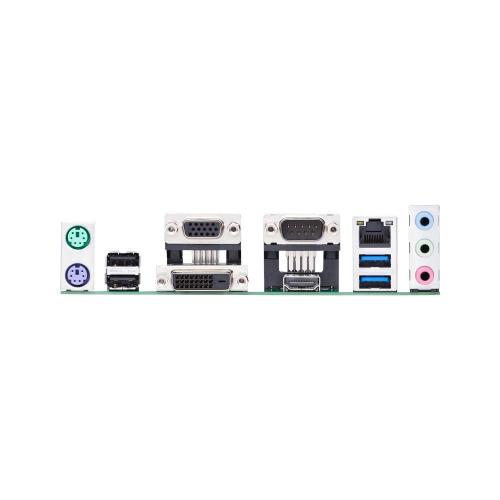

Serial1VGA1DVI1HDMI1RJ-451USB 2.02USB 3.02Suport audio5.1PS/2 Mouse1PS/2 Tastatura1 -
Sloturi
Sloturi PCI2PCI Express x11PCI Express 3.01 (x16) -
Specificatii Fizice
FormatmATX
