Descriere

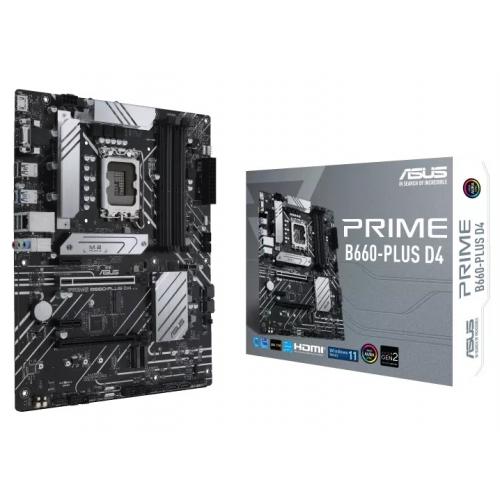

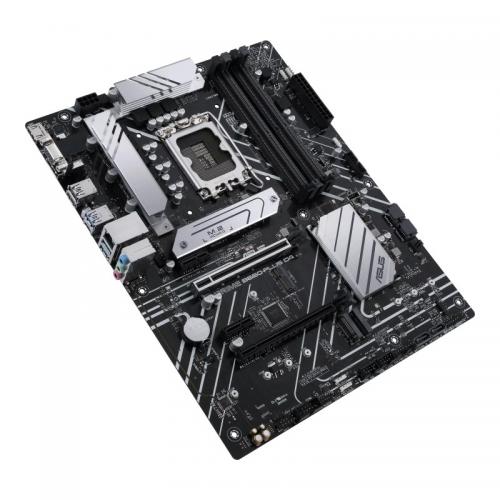

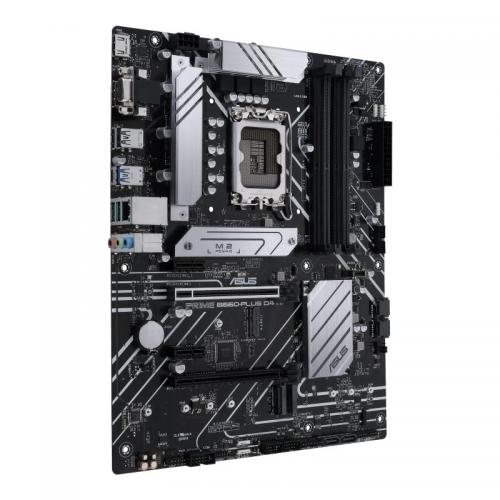

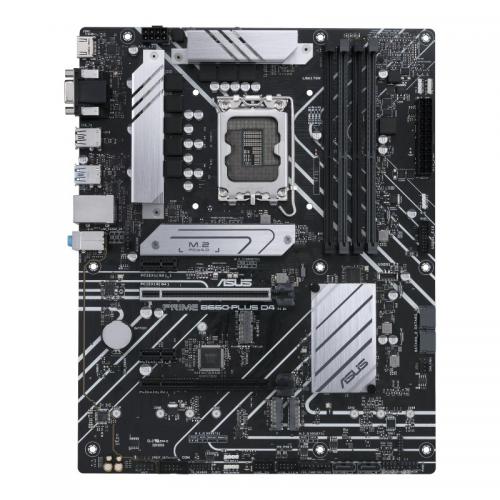

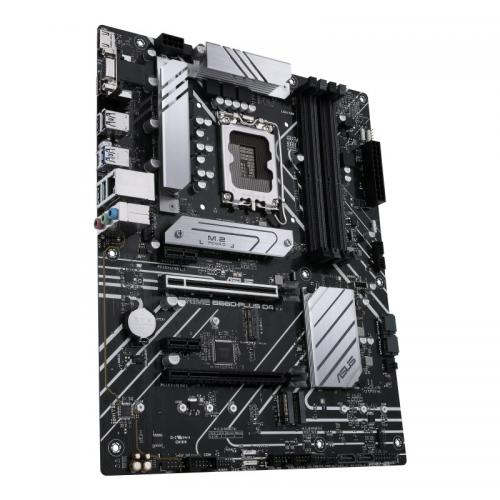

Placa de baza Asus PRIME B660-PLUS D4 Intel® B660 (LGA 1700) ATX motherboard with 8 power stages, PCIe 4.0 slots, three M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, HDMI®, D- Sub, rear USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Aura Sync Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors Ultrafast connectivity: PCIe 4.0 slots, three M.2 slots, rear USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Realtek 2.5Gb Ethernet and Thunderbolt™ 4 support Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+ ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability https://www.asus.com/Motherboards-Components/Motherboards/PRIME/PRIME- B660-PLUS-D4/
Specificatii produs
-
General
Recomandat GamingDaPlaca audio integrata7.1 Audio with Realtek ALC897Chipset audioRealtek ALC897RAID0, 1, 5, 10Placa video integrataNecesita procesor cu tehnologia Intel HD GraphicsPlaca retea integrata10/100/1000/2500 MbpsChipset reteaRealtek 2.5GbE LANBIOS128 Mb Flash ROM, UEFI AMI BIOSInterfata graficaPCI Express x16 4.0SATA III4NGFF (M.2)3 -
Procesor
CPU Socket1700ChipsetB660Producator chipsetIntelProcesoare suportateIntel 12th Generation Core/Pentium Gold/Celeron -
Memorie
Model memorieDDR4Capacitate maxima memorie RAM128 GBTehnologieDual channelFrecvente suportate5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHzSloturi memorie4 -
Conectivitate

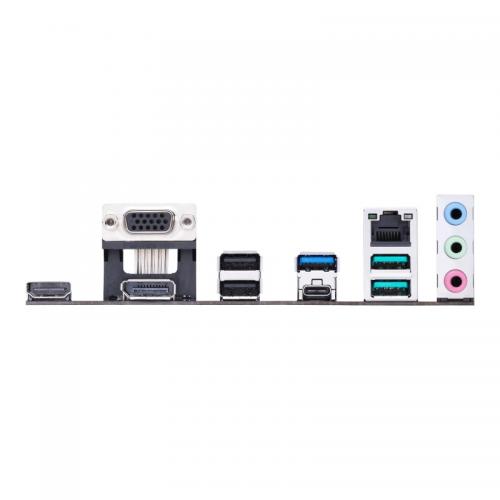

VGA1HDMI1DisplayPort1RJ-451USB 2.02USB 3.2 Gen1 tip A1USB 3.2 Gen2 tip A2USB tip C1 x USB 3.2 Gen 2x2 tip CSuport audio7.1Audio jacks3 -
Sloturi
PCI Express x12PCI Express 3.01 (x4)PCI Express 4.01 (x16)Header USB 3.0Da -
Specificatii Fizice
FormatATXDimensiuni (L x l, cm)30.5 x 24.4 cm
