Descriere

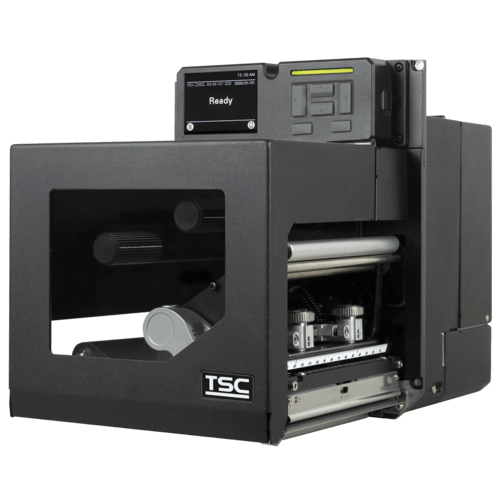

label printer (Print Engine), resolution: 12 dots/mm (300 dpi), media width (max.): 118 mm, print width (max.): 104 mm, roll diameter (max.): 90mm, ribbon core: 25,4mm, speed (max.): 356 mm/s, LCD Display, connection: USB (2.0), USB Host (2x), RS232, Ethernet, GPIO, RAM: 512 MB, Flash: 512 MB, incl.: cable (USB), power cable, QSG, colour: black
Specificatii produs
-
Caracteristici generale
Tip imprimantaIndustrialaFormatEticheteMod tiparireMonocromMetoda de printareTransfer termicInterfataUSB 2.0
2x USB Host
RS232
Ethernet
GPIODisplay3.5 inch IPS QVGA colourProcesor32-bit RISC high performance processor (BGA 536Mhz)Memorie512 MB Flash
512 MB RAMCoduri de bare suportateCoduri de bare 1D:
Code 11, Code 39, Code 49, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Standard 2 of 5, Industrial 2 of 5, Interleave 2 of 5, EAN-8, EAN-13, EAN-14, EAN-128, ITF14, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, PLANET, POSTNET, RSS-Stacked, GS1 DataBar, China Post, Telepen, LOGMARS
Coduri de bare 2D:
PDF-417, Micro PDF 417, Maxicode, DataMatrix, QR code, Aztec, TLC 39, RSSAlimentareAC 100-240V, 4-2A, 50-60HzSursa de alimentareDC 5V, 5A; DC 24V, 7A; DC 36V, 1.4A; Total 243WDimensiuni245 x 300 x 390 mmGreutate12.7 kgTemperatura de operare-5 - 45 grade CCuloareNegruAccesorii incluseCable (USB)
Power cable
QSGAlteleRight hand version -
Imprimare
Latime printabila maxim104 mmLungime printabila maxim2540 mmViteza de imprimare152 mm pe secundaRezolutie300 dpiFonturi Bitmap8 alpha-numeric bitmap fontsEmulariTSPL-EZD (compatible to EPL,ZPL,ZPL II, DPL)Fonturi conturate/vectorialeOne Monotype Imaging CG Triumvirate Bold Condensed scalable font
Built-in Monotype True Type Font engine -
Consumabile
Tip hartieRola
RibbonLatime minima hartie16 mmLatime maxima hartie118 mmGrosime hartie0.076 - 0.305 mmLatime ribon25.4 - 114.3 mmLungime ribon600 m
