Descriere

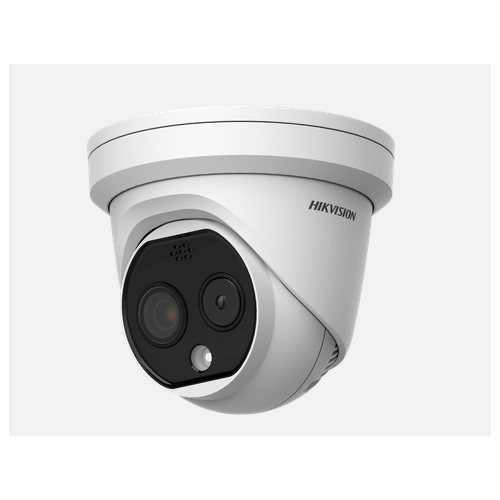

Camera supraveghere cu termoviziune pentru masurarea temperaturii corpului DS-2TD1217B-6/PA; Deep in View, masurare temperatura in timp real, filtrare si alarmare persoane cu temperatura ridicata. Detectie temperatura intre 30 si 45 grade C cu o precizie de 0.5 grade C, 3 reguli de masurare a temperaturii, simultan in 10 puncte, 10 zone si 1 linie. Video mode：Bi-spectrum image fusion; Thermal Module: senzor Vanadium Oxide Uncooled Focal Plane Arrays, rezolutie 160 × 120, lentila 6.2mm,FOV:25.0° × 18.7°; Optical Module: senzor 1/2.7" Progressive Scan CMOS, rezolutie: 2688 × 1520; lentila 8mm. Inaltime de instalare recomandata 1.5 metri, distanta de detectie 1.5 metri; interfata retea: 1, RJ45 10M/100M self-adaptive Ethernet interface; interfata seriala: 1 x RS-485; Alimentare: 12VDC si PoE (802.3af, class 3); dimensiuni: 138.3 mm × 138.3 mm × 123.1 mm; greutate: 940 g
Specificatii produs
-
General
TipDomeCarcasaIP66
TVS 6000V Lightning ProtectionInteriorDaExteriorDaRezolutie videoThermal: 160 × 120
Video: 2688 × 1520 pixeliLentilaFixaAudio1x 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Out: Linear Level; Impedance: 600 ΩInterfata comunicare1x RJ45 10 M/100 M Self-adaptive Ethernet interface
1x RS-485 interfacePoEDa, PoE (802.3af, class 3)AlimentareDC 12V, 0.5APutere consumata6 WTemperatura de functionare+10° C la +35° CDimensiuni138.3 × 138.3 × 123.1 mmGreutate940 g -
Camera
Senzor imagineThermal: VOx Uncooled Focal Plane Arrays
Video: CMOSRezolutii4 MPFrame Rate25/30 fpsIluminare minColor: 0.0089 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON)Distanta iluminare IR15 mDay& NightIR cut filter with auto switchCompresia DatelorH.264 (Baseline/Main/High Profile) /MJPEG/H.265Distanta FocalaThermal: 6.2 mm
Video: 8 mmDiafragmaF1.6 -
Functii camera
Network StorageBuilt-in MicroSD card slot, supporting MicroSD/SDHC/SDXC card (up to 256 G), supports manual/alarm recordingProtocoale suportateIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoEAlarm Trigger:2-ch inputs (0-5 VDC)
2-ch relay outputs, alarm response actions configurableAlteleClient: iVMS-4200, Hik-Connect
