Descriere

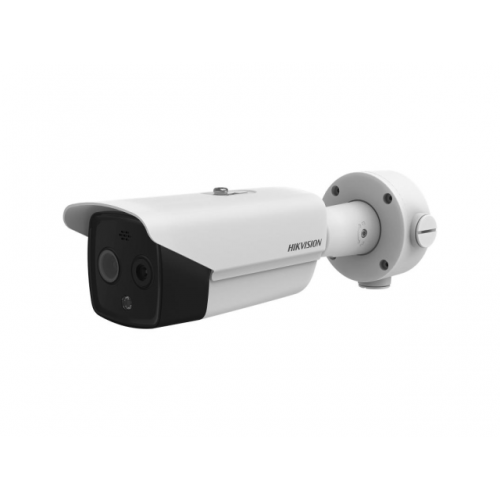

Camera supraveghere Thermal si Optical IP Bullet DS-2TD2617-6/QA (8mm), termal: 160 x 120, output image 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240), optic: 2688 × 1520, output image 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720), iluminare: 0.0089Lux @(F1.6,AGC ON) ,0 Lux cu IR, IR 40M, alimentare: 12 VDC ± 25%, φ 5.5 mm coaxial power plug, PoE (802.3af, class 3), protectie: IP67, dimensiuni: 358.3 mm × 113.5 mm × 115.2 mm, greutate: 1.76kg, temperatura de functionare: - 40°C to 65°C.
Specificatii produs
-
General
TipBulletCarcasaIP67
IK10InteriorDaExteriorDaRezolutie videoOptic: 2688 × 1520 pixeli
Termal: 160 × 120 pixeliLentilaFixaAudioDaInterfata comunicare1x RJ-45 10/100 Mbps
1x RS-485PoEDa, 802.3af, class 3Alimentare12 VDCPutere consumataMax 6 WTemperatura de functionare-40 - +65° CDimensiuni358.3 × 113.5 × 115.2 mmGreutate1.76 kg -
Camera
Senzor imagineOptic: 1/2.7 inch Progressive Scan CMOS
Termal: Vanadium Oxide Uncooled Focal Plane ArraysRezolutii4 MPFrame Rate30 fps max.Iluminare min0.0089Lux @(F1.6,AGC ON), 0 Lux with IRDistanta iluminare IR40 mCompresia DatelorCompresie video: H.265/H.264/MJPEG
Compresie audio: G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCMDistanta FocalaOptic: 8 mm
Termal: 6.2 mmDiafragmaOptic: F1.6
Termala: F1.1Zoom DigitalTermal
x2, x4 -
Functii camera
InfrarosuDaFunctii specialeFire detection, smoking detection, sun-reflection filterNetwork StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)Porturi2x alarm in
2x alarm out
audio in
audio outProtocoale suportateIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TLS
