Descriere

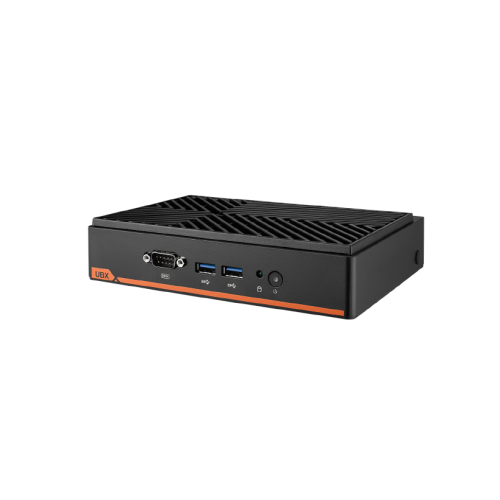

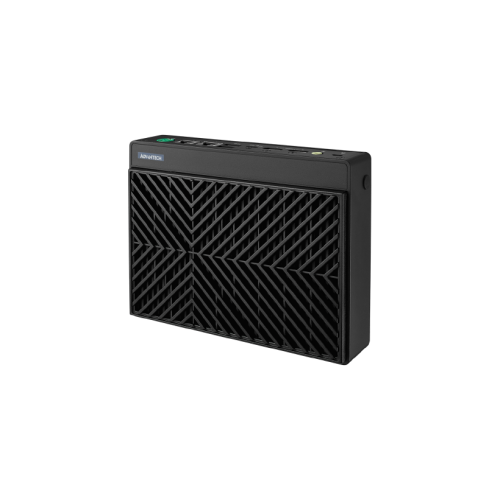

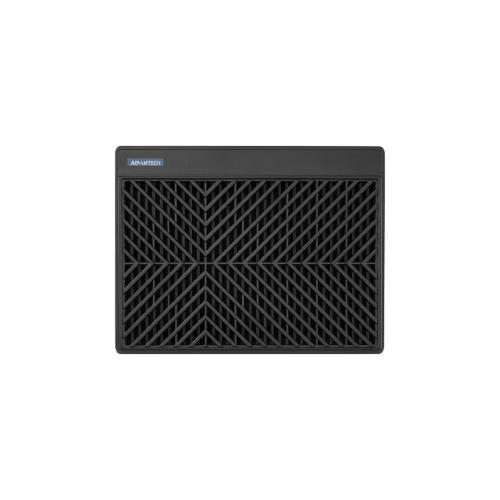

The UBX-110K is a 4K UHD fanless edge computer powered by an Intel® N97 or Core™ i3-N305 processor.
- Built-in an Intel® N97 or Core™ i3-N305 processor
- Built-in a TPM 2.0 chip for data encryption enhancement
- Supports triple displays to expand the visible range and provide detailed video content
- Supports two M.2 2280 SATA SSD expansions
- Supports up to 4K UHD for each video output
- The thermal isolation top cover ensures safe installation and user touch
- Supports Windows 10 IoT LTSC 2021, Windows 11 IoT, or Linux
Specificatii produs
-
Tip calculator
CompactDa -
Procesor
Producator ProcesorIntelModel ProcesorIntel Core i3-N305NucleuAlder Lake-NSocket procesor1264Frecventa turbo max3.80 GHzCache6 MB Intel Smart CacheNumar nuclee8Numar thread-uri8Max TDP15 WProcesor Grafic integratIntel UHD Graphics -
Display
Display inclusNu -
Memorie
Tip memorieDDR5Capacitate memorie8 GBTip sloturi memorieSODIMMCompatibilitate RAMnon-ECCSloturi memorie1Memorie maxima16 GB -
Stocare
Tip stocareCFlashCapacitate stocare128 GB -
Conectivitate
LANDaWirelessDaBluetoothDa -
Porturi
Jack casti1 -

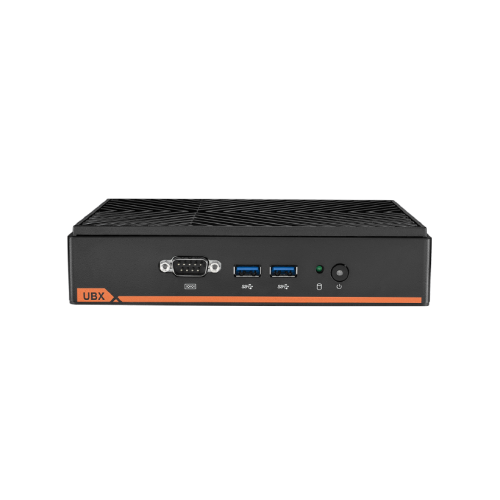

Front Panel
Serial1USB 3.22 -

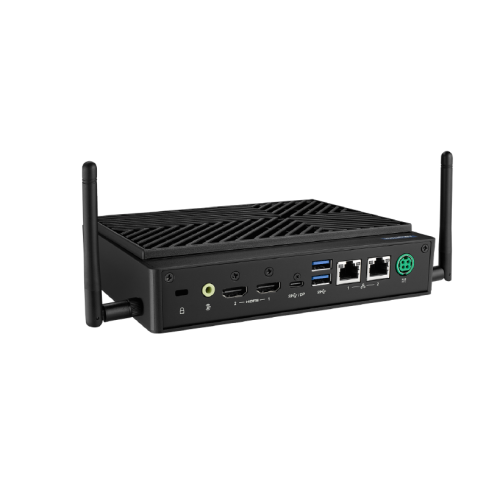

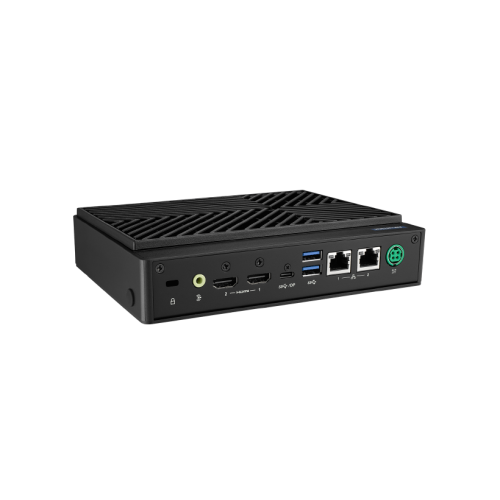

Back Panel
RJ-452USB 3.22USB-C1HDMI2 -
Sloturi expansiune
M.2 22301M.2 22802 -
Software
Sistem de operareWindows IoT LTSC 2021Software inclusDeviceOn/iService software for remote device management -
Altele
Butoane control1 x Power ButtonSecuritate TPMTPM 2.0Kensington LockDaAlimentareDC12V/60W Power AdapterMontareVESA, Desk, WallStandard VESAOptional 100 x 100 mm VESAContinut pachet1 unit UBX-110K Box Computer
1 pcs DC12V/60W Power Adapter
1 pcs Memory Shielding Case and 1 pcs Thermal Pad for Memory Shielding Case
1 pcs Thermal Pad for DDR5 Memory
1 pcs SSD Shielding Case and 1 pcs Thermal Pad for SSD Shielding Case
2 pcs Thermal Pad for M.2 SSD -
Caracteristici fizice
Dimensiuni182.5 x 141.0 x 42.15 mmGreutate0.94 KgCuloareNegru
