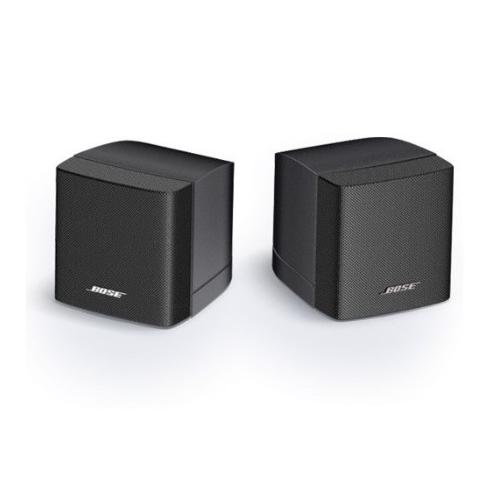

The Bose® FreeSpace® 3 surface-mount satellites are high-performance, extended-range loudspeakers designed for small to medium-sized installed applications requiring high fidelity and extended bandwidth reproduction of voice and music.

For indoor applications only.


FEATURES


Subwoofer/satellite systems that deliver high fidelity and extended-bandwidth reproduction of voice and music for a wide range of installed applications, including retail, restaurant and hospitality operations

Modular design supports the flexibility for use of 2 or 4 satellites per Acoustimass bass module, and parallel connection of bass modules

Mix and match surface-mount and flush-mount components to work with different room decors and layouts for a variety of applications

Flush-mount components are plenum rated when used with the optional plenum cover

Selectable 70/100V or low impedance with transformer tap adjustment on Acoustimass bass module

Can be configured for stereo or mono operation



Applications

• Retail stores
• Restaurants and bars
• Lobbies and conference rooms

Technical Summary


Frequency Response (+/-3 dB)
50 Hz - 16 kHz (System)
210 Hz - 16 kHz (Satellites)

Frequency Range (-10 dB)
40 Hz - 20 kHz (System)
170 Hz - 20 kH z (Satellites)

Nominal Dispersion
170 ° conical

Long-Term Power Handling
System: 70/100 V: 200 W (800 W peak)
System Low impedance: 100 W (400 W peak)
Satellites: 12W (48W Peak)
Sensitivity (SPL / 1 W @ 1 m)
82 dB SPL (System)
84 dB SPL (Satellites)

Maximum SPL @ 1 m
System: 93 dB (99 dB SPL peak in a 45,000 ft³ room, with RT60 of 1 second, +/- 3 dB)
Satellites : 95 dB (101 dB SPL peak)

Nominal Impedance
4-Cube System: 6 Ω per channel
2-Cube System: 5 Ω per channel (surface);
6 Ω per channel (flush)
