Descriere

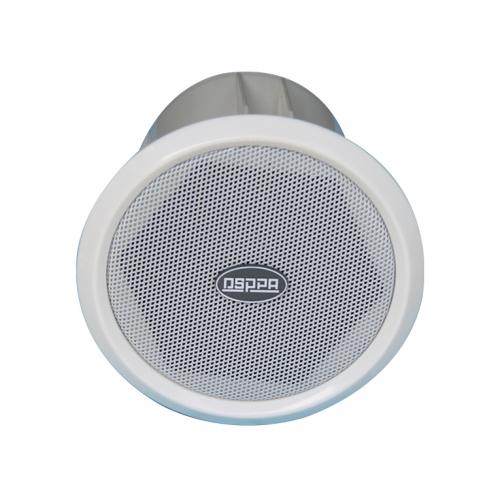

DSP531 is a ceiling speaker with built-in 70v/100v transformer. The 70v/100v transmission is realized in a high-voltage, low-current mode, which makes longer distance transmission and parallel connection of multiple loudspeakers possible.
The built-in 3” speaker driver is designed of wide frequency response 130Hz-20kHz, Its made of high quality ABSmaterial, which ensures long-term durability, and will never be out of shape or fading;

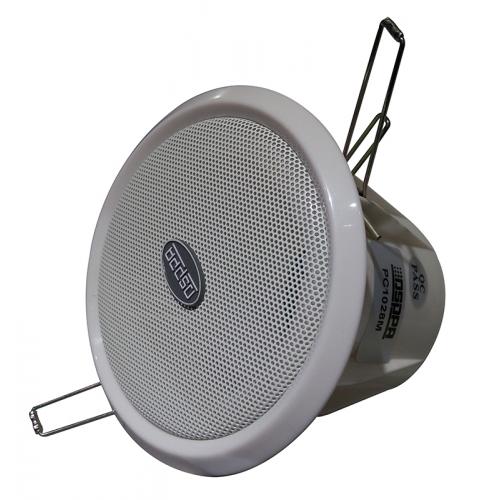

Spring clip clamp makes the easy and secure installation; Driver surround excellent damping, long life, clear and sonorous sound.
Features:

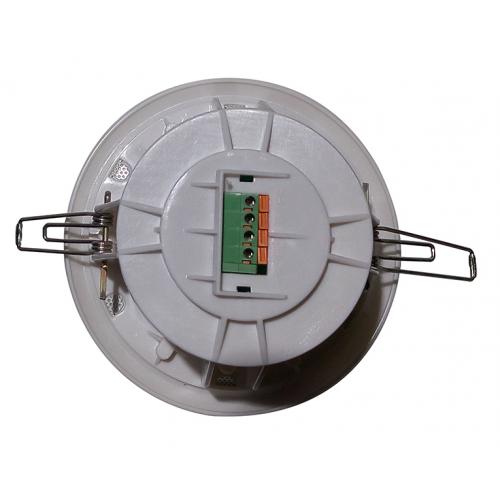

● 70/100V, 1.5 ~ 10W with multiple terminals
● 3” paper cone driver unit
● Max. Sound Pressure Level 101±2dB
● Effective Freq. Range 130Hz-20kHz
● Rated power output at 6W
● High sensitivity(91±2dB)
● ABS material
|
Model |
DSP531 |
|
FULL-RANGE |
3” X 1 |
|
RATED POWER |
6W |
|
MAX POWER |
10W |
|
LINE INPUT |
70/100V |
|
SENSITIVITY(1M,1W) |
91±2dB |
|
MAX SPL(1M) |
101±2dB |
|
FREQ.RESP |
130Hz-20kHz |
|
CUTOUT SIZE |
Ø102 - Ø106mm |
|
DEMENSIONS(H x W x L) |
105 x Ø120mm |
|
WEIGHT |
0.4kg |
Specificatii produs
-
Tip echipament
BoxaDa -
Boxe
Numar boxe in pachet1Boxe PortabileNuInstalare BoxeTavanUtilizare BoxeInteriorBoxa activaNuMixerNuTransformator 100VDaPutere6WImpedanta100VSensitivity91±2dBFrecventa de raspuns130Hz-20000HzSPL maxim101±2dBWaterproofNuFireproofNuDimensiuni105 x 120 mmGreutate0.4 kgCuloareAlb
