Amplificator de putere DSPPA MP6450, 500W, 100V, 4 Ohmi

Disponibilitate: Lipsa stoc
Termen livrare: Intreaba
Opinia cumparatorilor:
(0 review)
  • Producator: DSPPA
  • Garantie: 12 luni
  • Cod produs:
  • Puteti comanda acest produs:
  • Online
  • La telefon: 0372.030.470
Cards
Pret:
3.07793 ron
Nu esti hotarat ?

DESCRIERE PRODUS

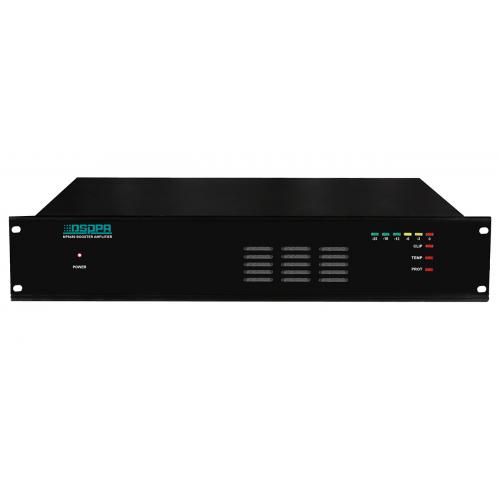

This amplifier is designed for commercial and industrial public address applications. Rack mount design in 2U type and rated power is 500W.

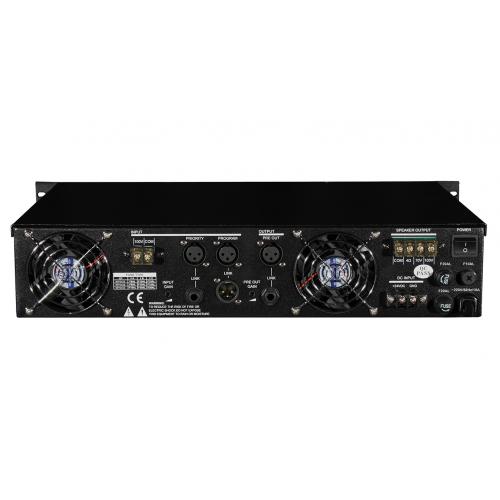

Both balanced and unbalanced line inputs are available for each channel. Balanced line output feeds to another power amplifier as well as secures the signal transmission is less noise and longer distance. 70V, 100V and 4Ω speaker outputs are convenient for installation when selection different speaker matching. A master volume control is included. Complete protection includes clip, short circuit, high temp and overload. With indications for power, signal, clip, protection and temp.

Features:
● Transformer isolated 100V, 70V and 4Ω speaker outputs, balanced, no grounding.
● 5 LED indicators for status display
● XLR socket and 6.35mm jack for amplifier link
● Short circuit output protection & LED display
● Series amplifiers of high output power available.

Model

MP6425

MP6438

MP6450

Rated Power

250W RMS

380W RMS

500W RMS

Input sensitivity

1V

S/N Ratio

>85dB

Frequency Response

80Hz~16kHz   /±3dB

THD 4W/1kHz

<0.5 %

Cooling Style

12V DC Fan

Indicators

Power: Red, Clip: Red”, Sound: Green, Protection: Red, Temperature: Orange

Protection

Turn on delay, thermal, DC fault, short circuit

220V AC Fuse

F6AL

F8AL

F10AL

24V DC Fuse

FB15AL/FC10AL

FB/FC: 15AL

FB/FC: 20AL

Power Supply

AC220V/50-60Hz          24VDC

Power Consumption

500W

760W

1000W

Dimension

88´483´390mm

Gross Weight

17kg

19.3kg

20.6kg

Net Weight

16kg

18.3kg

19.5kg

Specificatii produs

  • Tip echipament

    Amplificator
    Da
  • Amplificator

    Tip Amplificator
    Amplificator de putere
    Putere
    500W
    Dimensiuni
    88 x 483 x 390 mm
    Greutate
    16 kg
