Descriere

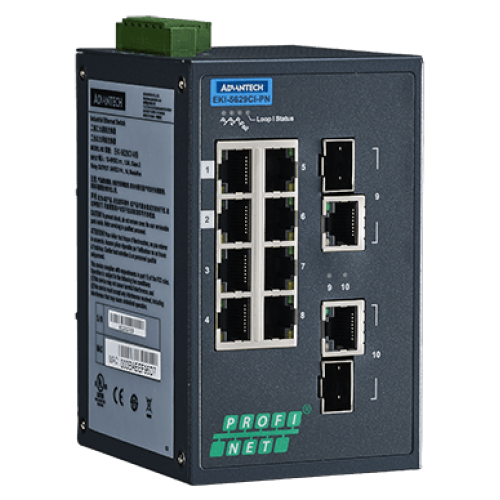

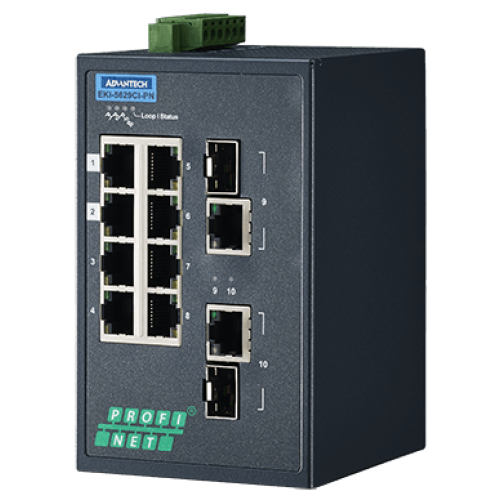

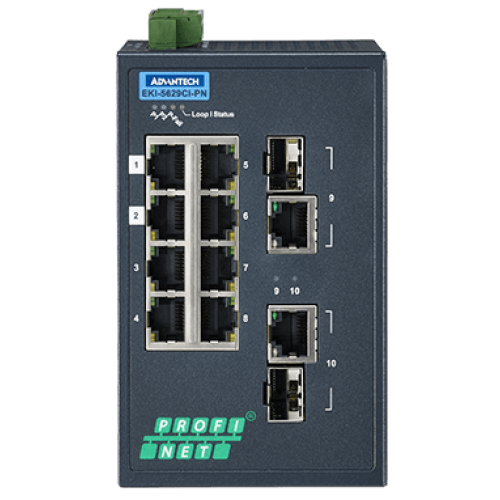

8FE+2G Combo Managed Ethernet Switch support PROFINET, -40~75℃
- 8 Fast Ethernet ports + 2 Gigabit Copper/SFP combo ports (EKI-5629C/I-PN)
- Entry-Level Managed Switch
- IXM function enables fast deployment
- Provides GSDML files
- Management: SNMP v1/v2c/v3, WEB, Standard MIB, Private MIB
- Supports Media Redundancy Protocol (Media Redundancy Client)
Specificatii produs
-
Caracteristici generale
Tip SwitchRetea RJ45Numar Porturi8 x RJ45
2 x 1G RJ45/SFP combo (uplink)Viteza Transfer LAN100 MbpsTehnologie de cablareRJ45 Base-T
Base-XManagementDaLayerLayer 2PoENuStandardeIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1X, IEEE 802.3AD, IEEE 802.3azSecuritate802.1x (Port-Based, MD5/PEAP Encryption), Static, Dynamic, MAC address filteringVLANs4094Tabela de adrese MAC8KMontare in rackDa, DIN railSwitch capacity5.6 GbpsProtocoale de rutareGMP Snooping v1/v2/v3, MLD Snooping, IGMP Immediate leave, Broadcast, Multicast, Unknown unicast, IEEE 802.1D-STP, IEEE 802.1w-RSTP, X- Ring Elite, Tag based VLAN, GVRPRemote Management ProtocolSNMP v1/v2c, WEB, Standard MIB, Private MIB, DHCP Client, Option 82, TFTP, HTTP, Dual Image, SNTP client, Syslog, IPV6, LLDP, PROFINET, Media Redundancy ProtocolLED IndicatorsPWR1, PWR2, P-Fail, Loop detection, Link, Speed, ActivityTensiune de intrare12 ~ 48 V DCAlimentare6-pin screw Terminal Block (including relay)
Redundantă cu protecție la polaritate inversăPutere consumata (W)5.8 WDimensiuni74 x 120 x 84 mmGreutate0.8 kgAlteleTemperatura de operare: -40 ~ 75 °C
Umiditate: 10 ~ 95% (fara-condensare)
